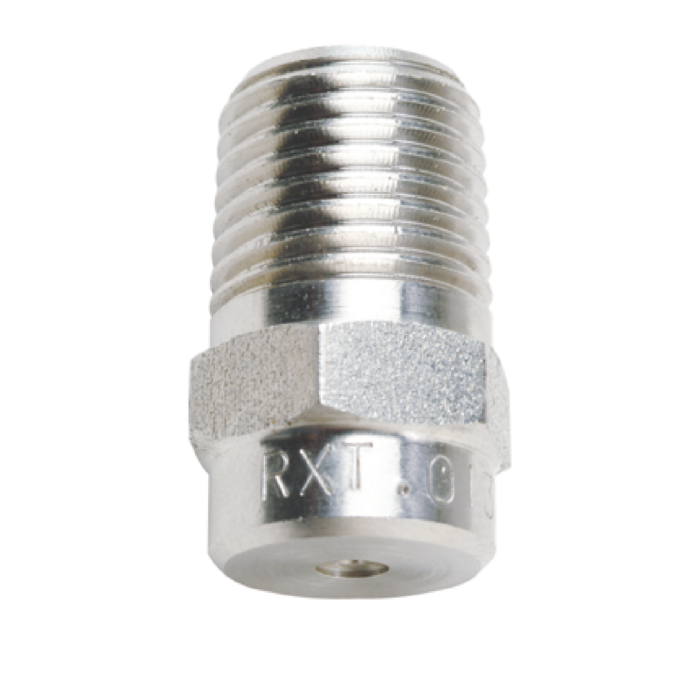

RX/RZ/RW – Hydraulic Atomiser
Connection: 1/4″ Spray angle: 60° to 80°, Capacity: 3.9-99.6 L/hour, Material: AISI 303, AISI 316, Brass
Flow Rate
lpm@3bar(0.08 to 2.00)
Material
AISI 303 s.s. AISI 316L s.s. Brass
Connection

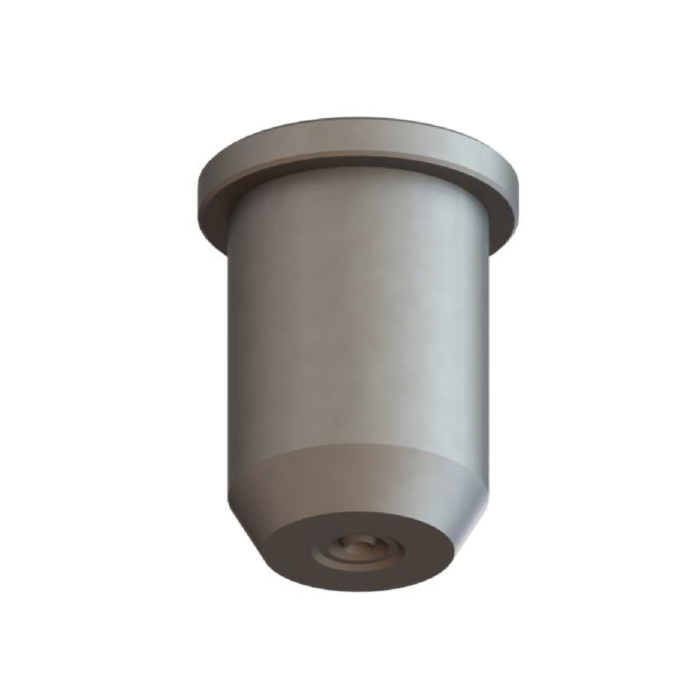

RX: 1/4″ M BSPT, NPT RZ: 1/4″ M BSP, NPT RW: welding nipple + locknut
Description
RX/RZ/RW – Hydraulic Atomiser RW RX RZ hollow cone nozzle deliver a very finely atomized hollow cone spray, even at low pressure values. They contain a precisely machined insert with narrow passages that can be easily disassembled for cleaning in case of obstruction. Clogging can be avoided placing a fine mesh strainer on the main manifold or using an individual filter, such as VEF (with RZ hydraulic nozzle).
Thread: 1/4″ Spray angle: 80°
Capacity: 3.9-99.6 L/hour
Material: AISI 303, AISI 316, Brass
Typical applications -dust control, humidification, deodorant spray, disinfectant liquid spray, exhaust scrubbers
