Flow Rate
Nozzle Dependant
Material
PVDF, 304 & 316SS, Neodymium,
Connection
8mm Tube Inlet, 1/4" outlet M or F
Description

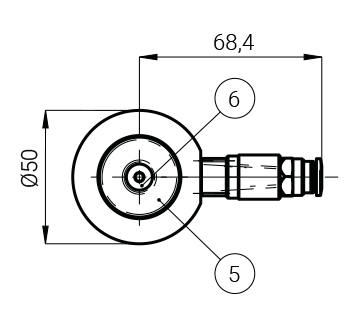

ZDA is a magnetic base adjustable air nozzle holder with a flexible and directional hose for air-blowing nozzles.
It is compatible with all PNR Italia blowing nozzles including the UEA solid jet or the UEA flat jet.
ZDA attaches easily to all types of metal magnetic surfaces, thanks to the 20kg magnetic force base. Installation does not require screws, threads, or holes.

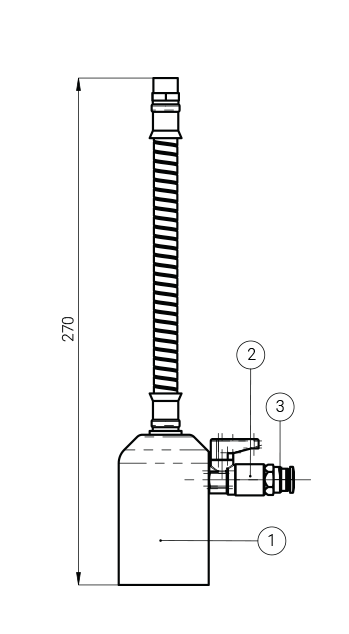

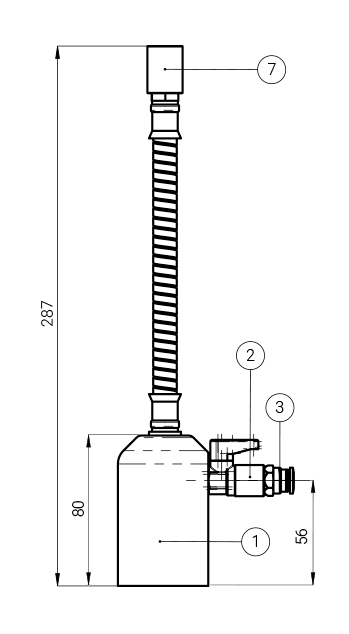

The supplied hose is adjustable semi-rigid steel that directs the air jet precisely. The tube length varies from 270mm to 287mm, depending on the type of connection for the male or female blowing nozzle. The connection for the blower nozzle is ¼”, while the air intake fitting is designed for a tube diameter of 8mm; the magnetic base is also equipped with an isolation valve.
The applications for the adjustable air nozzle holder include the removal of dust, liquids, or residues of processing, cooling, drying, cleaning of parts, blowing, and material handling.
