UEA – Fan Air Nozzle
Connection: 1/4″, Width: 48mm, Capacity: 22Nm³/hour, Material: POM, Aluminimum, AISI 316
Flow Rate
N/A
Material
Materials Ni-plated Aluminium POM AISI 316L s.s.
Connection
Max working pressure
UEA 0525 E31: 4 bar UEA 0527 V7/B31: 15 bar (see section below)
Description

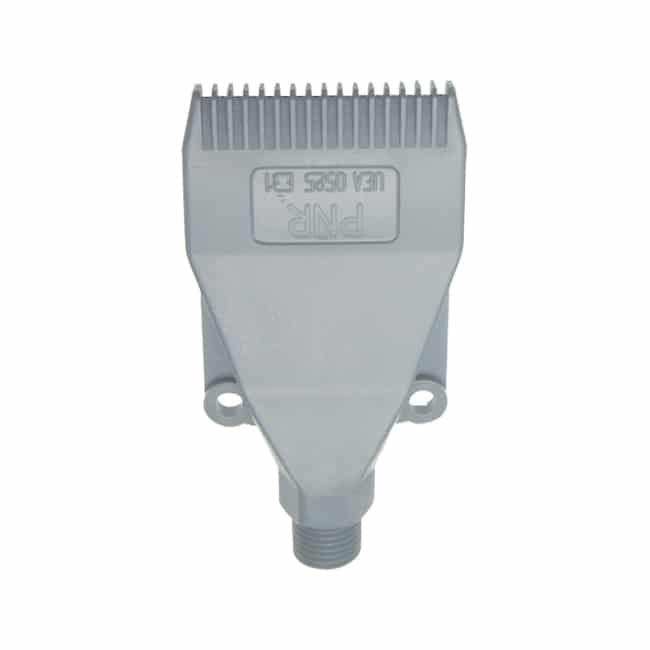

UEA – Fan Air Nozzle
UEA series flat fan air nozzle is the best choice for operating environments requiring strong impact laminar sprays. The compressed airflow is blown through 16 orifices producing a strong impact jet, limited noise level and uniform spray.
They are often installed on moving conveyors for cooling, drying and water blow-off applications.
Thread: 1/4″
Width: 48mm
Capacity: 22Nm³/hour
Material: POM, Aluminium, 316LSS
Typical applications – Water removal from surfaces, Flocks and water blow off
Product Enquiry
Technical Info

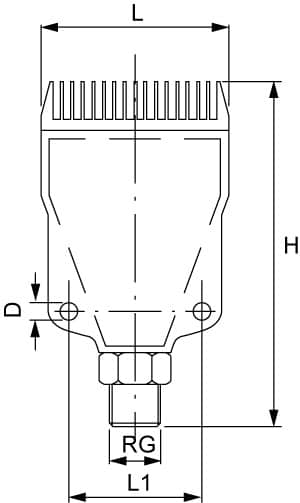

Dimensional Table(s)
Flow Rate Table(s)
How to make up the Nozzle code
