UEA – Round Air Nozzle
Connection: 1/4″, Spray angle: 20°, Capacity: 20 Nm³/hour (3 bar), Material: AISI 316L, Electroless nickel plate aluminum
Flow Rate
N/A
Material
Aluminium, electroless nickel plated AISI 316L s.s.
Connection
Thread size 1/4″ Max working pressure 15 bar
Description
UEA – Round Air Nozzle
UEA D020 compressed air blowing nozzles produce a powerful air jet concentrated on a well-defined impact point. They are specially designed for deep and blind holes drying, producing lower noise and reduced pressure loss.
Thread: 1/4″
Spray angle: 20°
Capacity: 20 Nm³/hour (3 bar)
Material: AISI 316L, Electroless nickel plated aluminium
Typical applications – Water removal from surfaces, Flocks and water blow off
Product Enquiry
Technical Info
Dimensional Table(s)

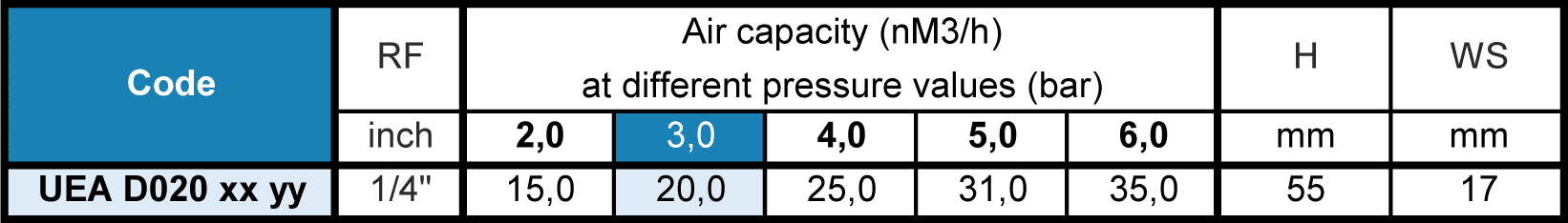

Flow Rate Table(s)

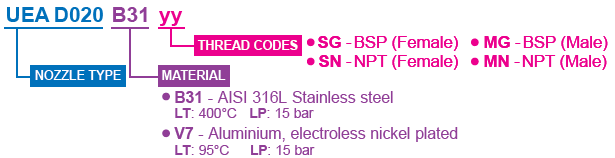

How to make up the Nozzle code
