V7 – Dust Controller
Effective Distance
30 - 40 meters
Flow Rate
16 to 100 L/min
Swivel / Tilt
Swivel 360°, Tilt -10° to +35°
Description

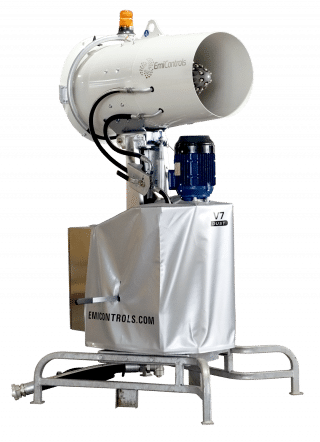

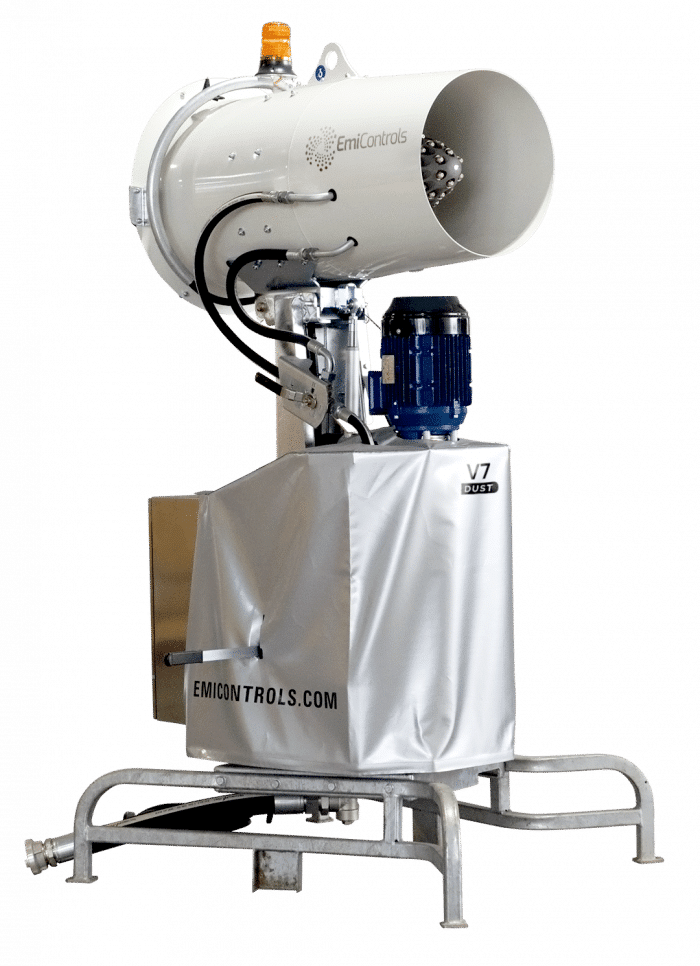

V7 Dust Controller

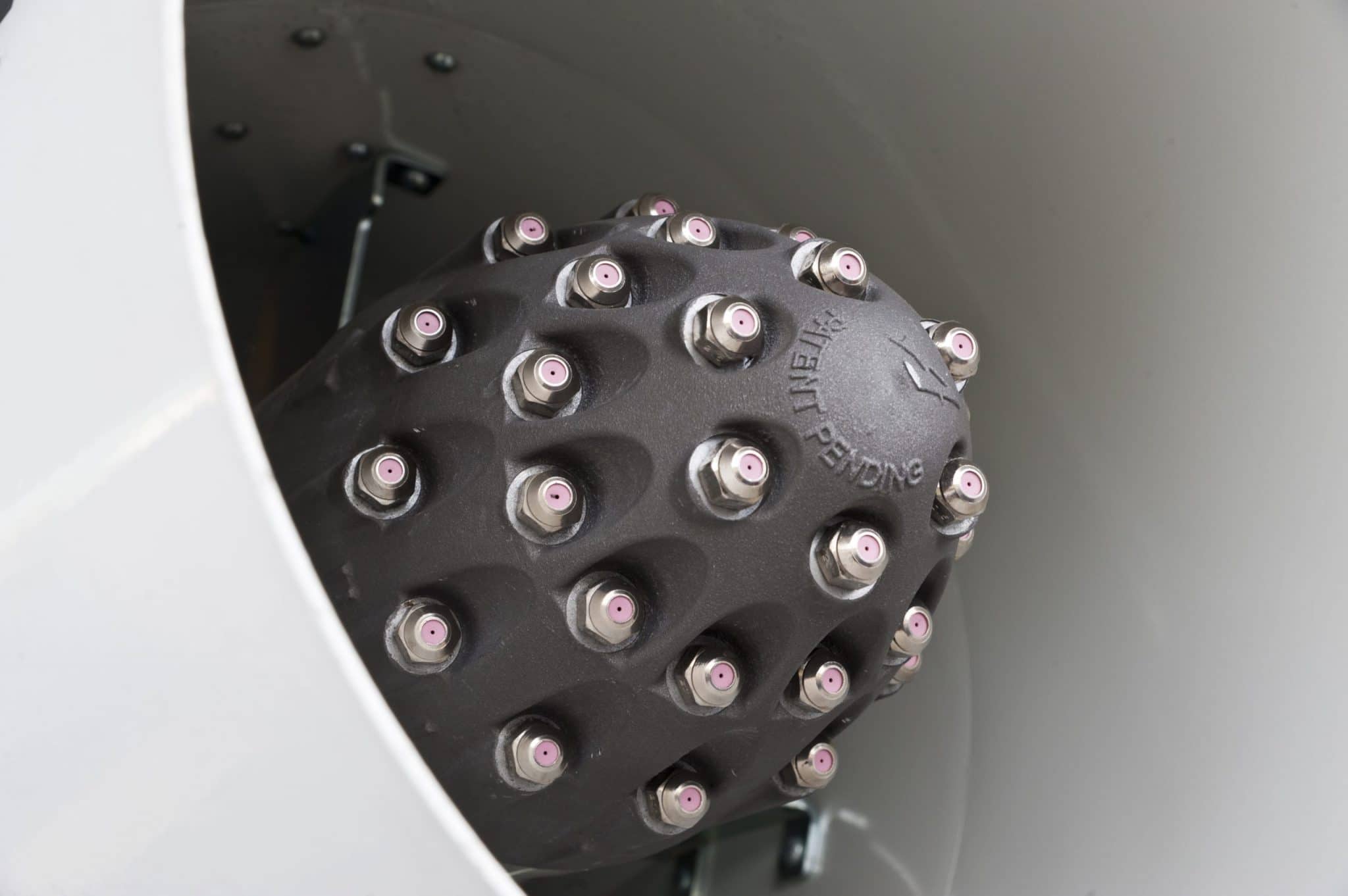

The V7 is the V12 dust suppression sprayer’s little sister. The patented nozzle head on the V7 is fitted in the axial direction in the turbine and achieves a much higher projection range than comparable nozzle configurations. It has a booster pump and can therefore also be used with the turbine switched off.
The user-friendly remote control system, the 52° tilt angle, 360° pivoting angle and the booster pump with automatic protection against freezing and running dry, all combine to make the V7 a reliable, flexible and compact dust suppression cannon.

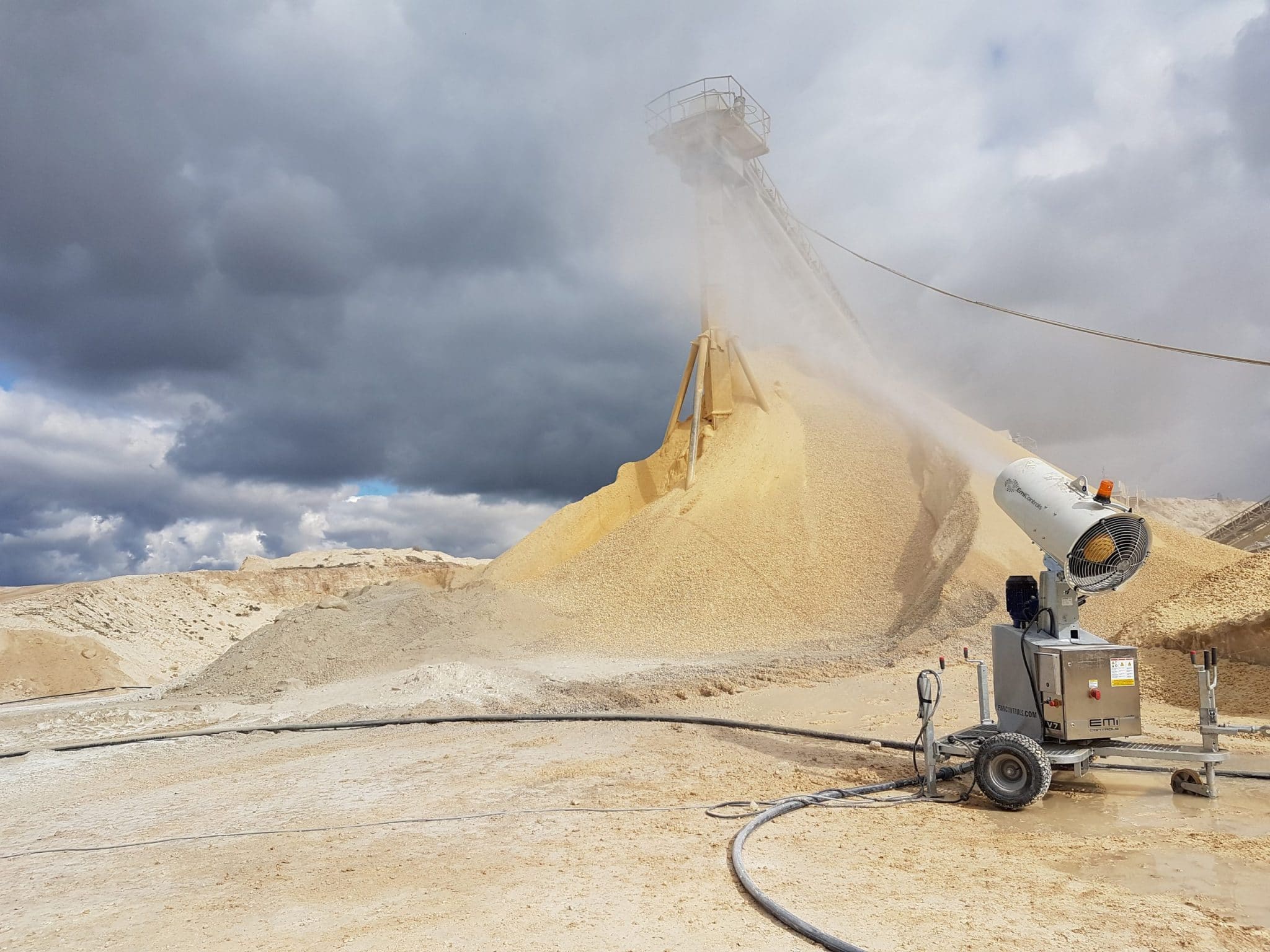

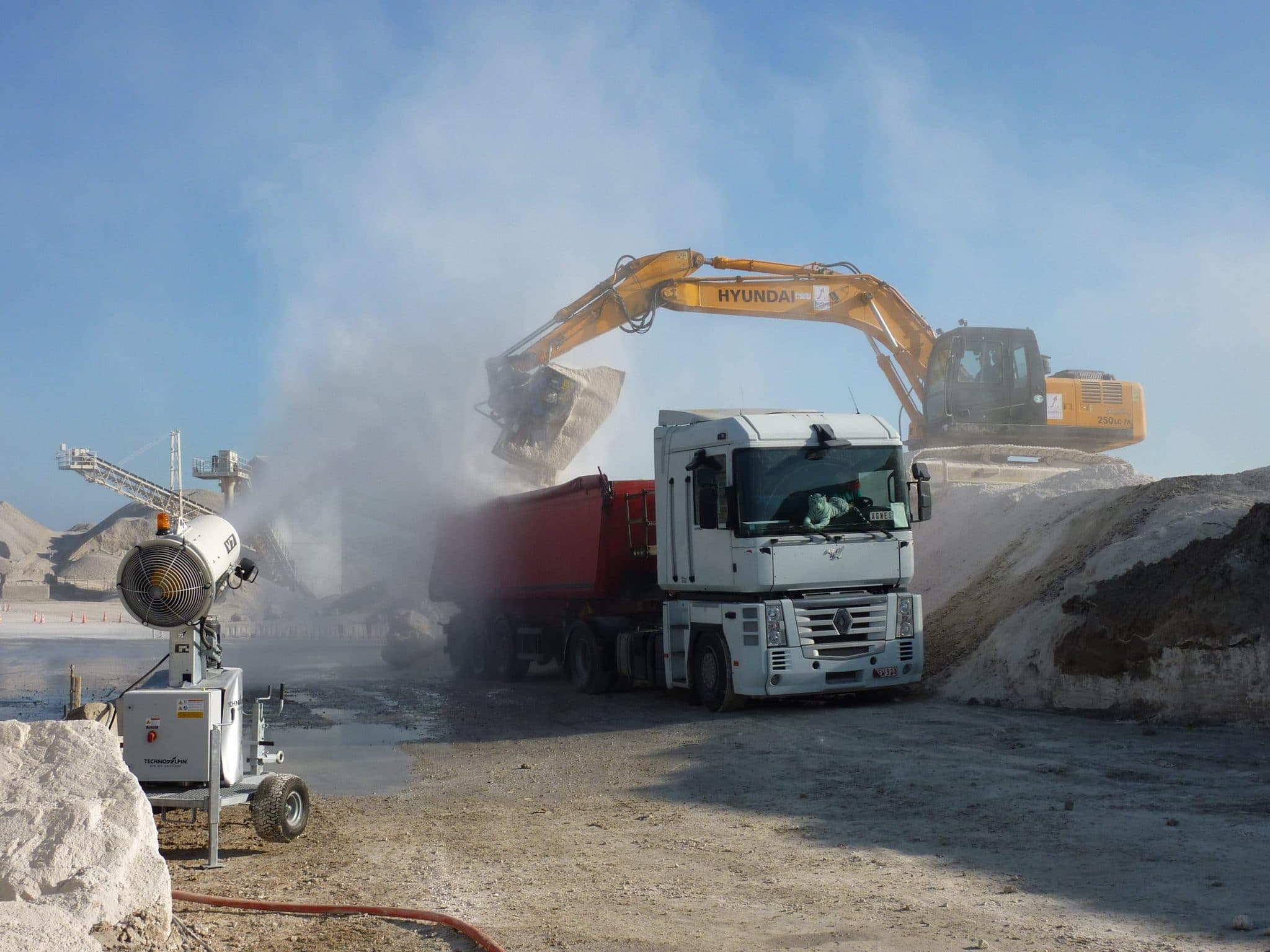

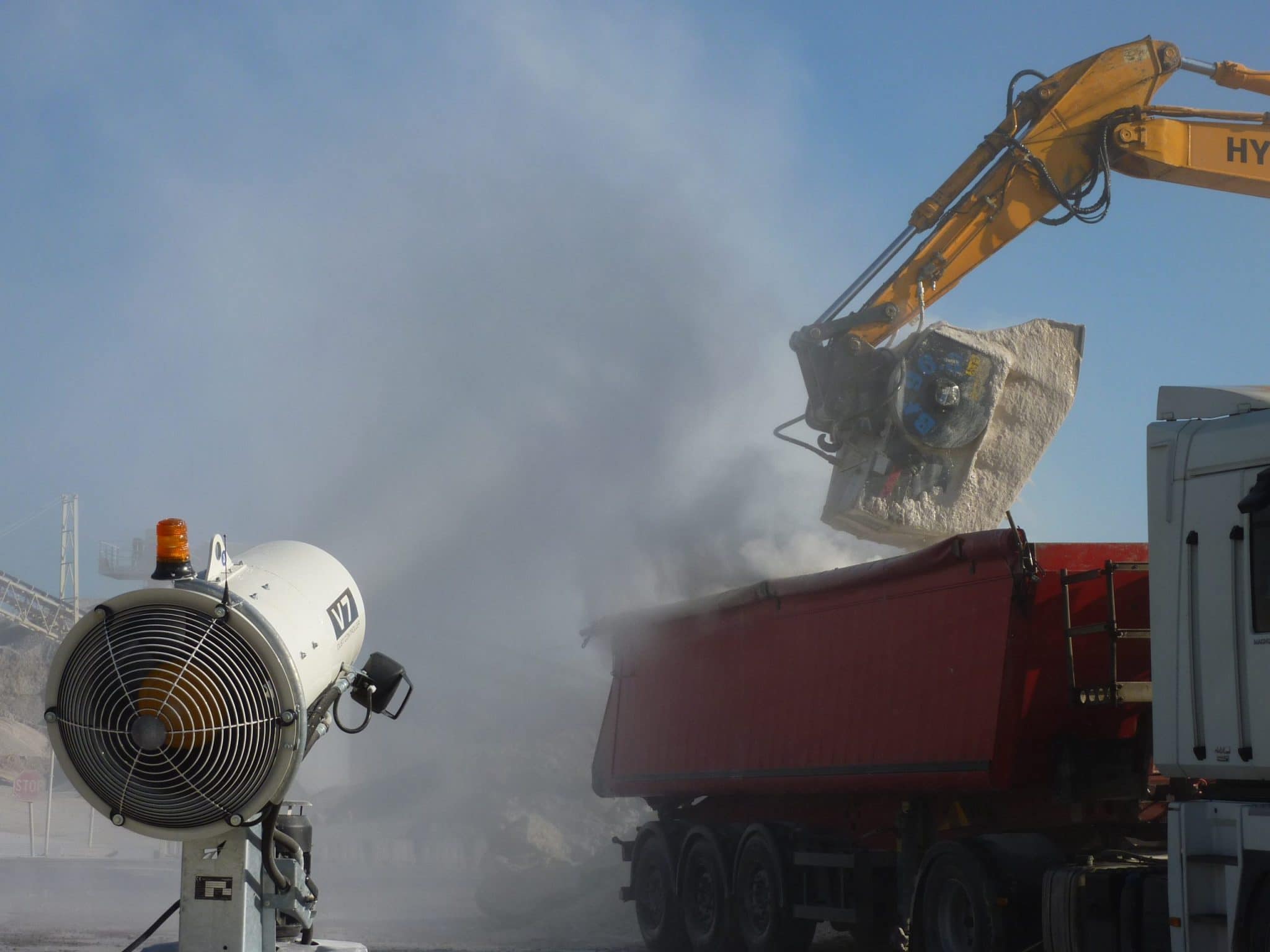

Typical fields of application include dust suppression in recycling plants, material handling & reloading facilities, woodworking and relatively small demolition jobs.
TECHNICAL DATA
| Length excl. steering assembly (on undercarriage) | 1860 mm |
| Length incl. steering assembly (on undercarriage) | 2360 mm |
| Width excl. wheels (on undercarriage) | 1430 mm |
| Width incl. wheels (on undercarriage) | 1820 mm |
| Height excl. wheels (on undercarriage) | 2140 mm |
| Height incl. wheels (on undercarriage) | 2320 mm |
| Length (on fixed underframe) | 1200 mm |
| Width (on fixed underframe) | 1000 mm |
| Height (on fixed underframe) | 2300 mm |
| Weight on undercarriage excl. front wheel | 500 kg |
| Weight on undercarriage incl. front wheel | 540 kg |
| Weight on underframe | 420 kg |
| Weight of machine only | 350 kg |
| Max. rotation angle | 360° |
| Turbine incline | 0° – 52° |
| Height adjustment facility | electric/manual |
| Pump | 4 kW |
| Turbine motor | 6,5 kW |
| Connection voltage | 400/440 V |
| Frequency | 50/60 Hz |
| Power supply connection | 32 A x 5 |
| Water supply connection | Camlock/Storz “C” |
| Min. water intake pressure | 3 bar |
| Pump monitor: manometer | / |
| Water filter | 250 µm |
| Number of nozzles | 12 + 18 |
| Water throughput | 15 – 100 l/min |
| Halogen lamp | 150 W |
| Remote control | radio, 100 – 150 m |

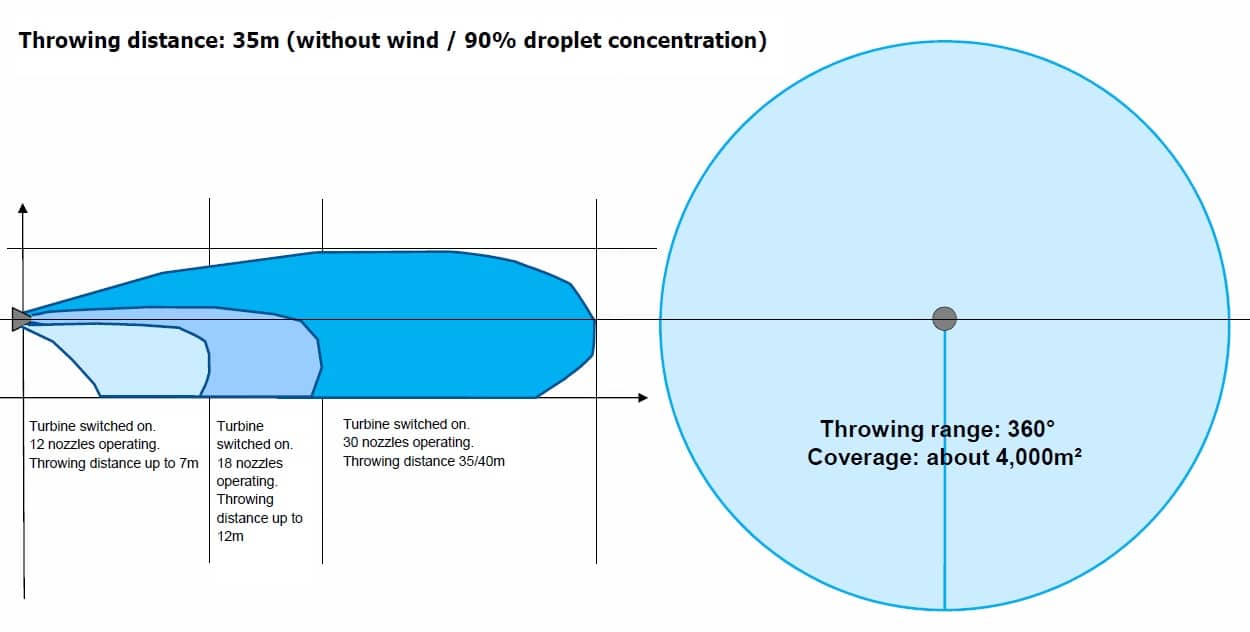

V7 Dust Controller Throw Distance and Range
