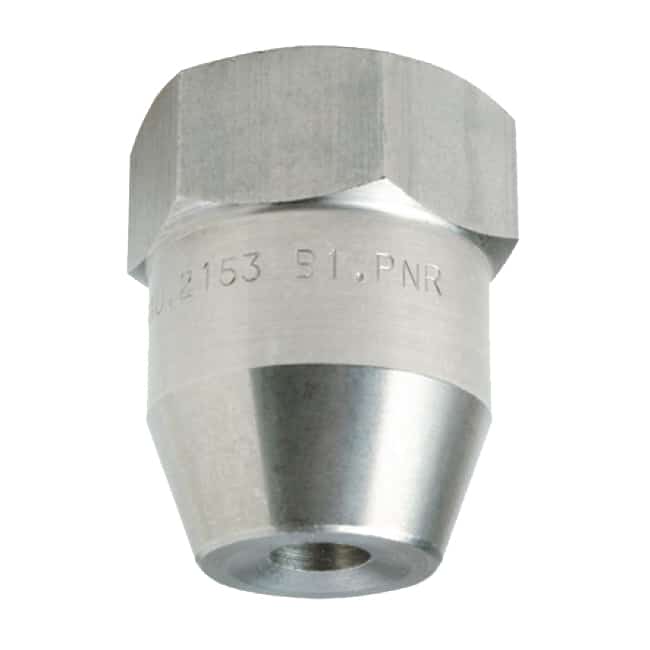

RA – Fine Spray Hollow Cone Nozzle
Connection: 1/8″ to 1/2″, Spray angle: 60° – 90°, Capacity: 0.2- 19.6 L/min, Materials: AISI 316L, Brass
Flow Rate
lpm@3bar(0.20 to 19.6)
Material
AISI 316L s.s. Brass AISI 303 s.s. (opt.)
Connection
Female BSP Female NPT
From 1/8″ to 1/2″
Description
RA – Fine Spray Hollow Cone Nozzle RA nozzles are tangential hollow cone nozzles that produce a finely atomized spray in line with the inlet supply pipe. In their body there is a carefully machined swirl vane with two spiral grooves which produce a wide range of capacities, starting from very low values. The strong centrifugal force inside the vortex chamber creates a high-speed rotation of the liquid flow producing an atomized mist. For small capacity RA nozzles we suggest to place a suitable filter before their inlet orifice to avoid clogging.
Thread: 1/8″ – 1/2″
Spray angle: 60- 90°
Capacity: 0.2- 19.6 L/min
Materials: AISI 316L, Brass
Typical applications –
Cooling: gas, products, pipes cooling
Washing: exhaust scrubbers, parts washing
Other applications: dust control, humidification and air refreshing systems
Product Enquiry
Technical Info

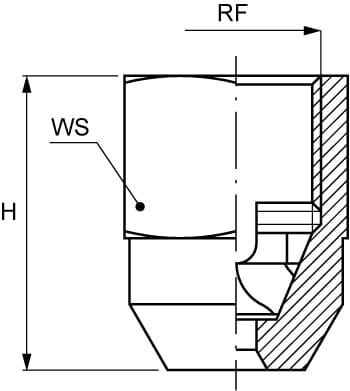

Dimensional Table(s)

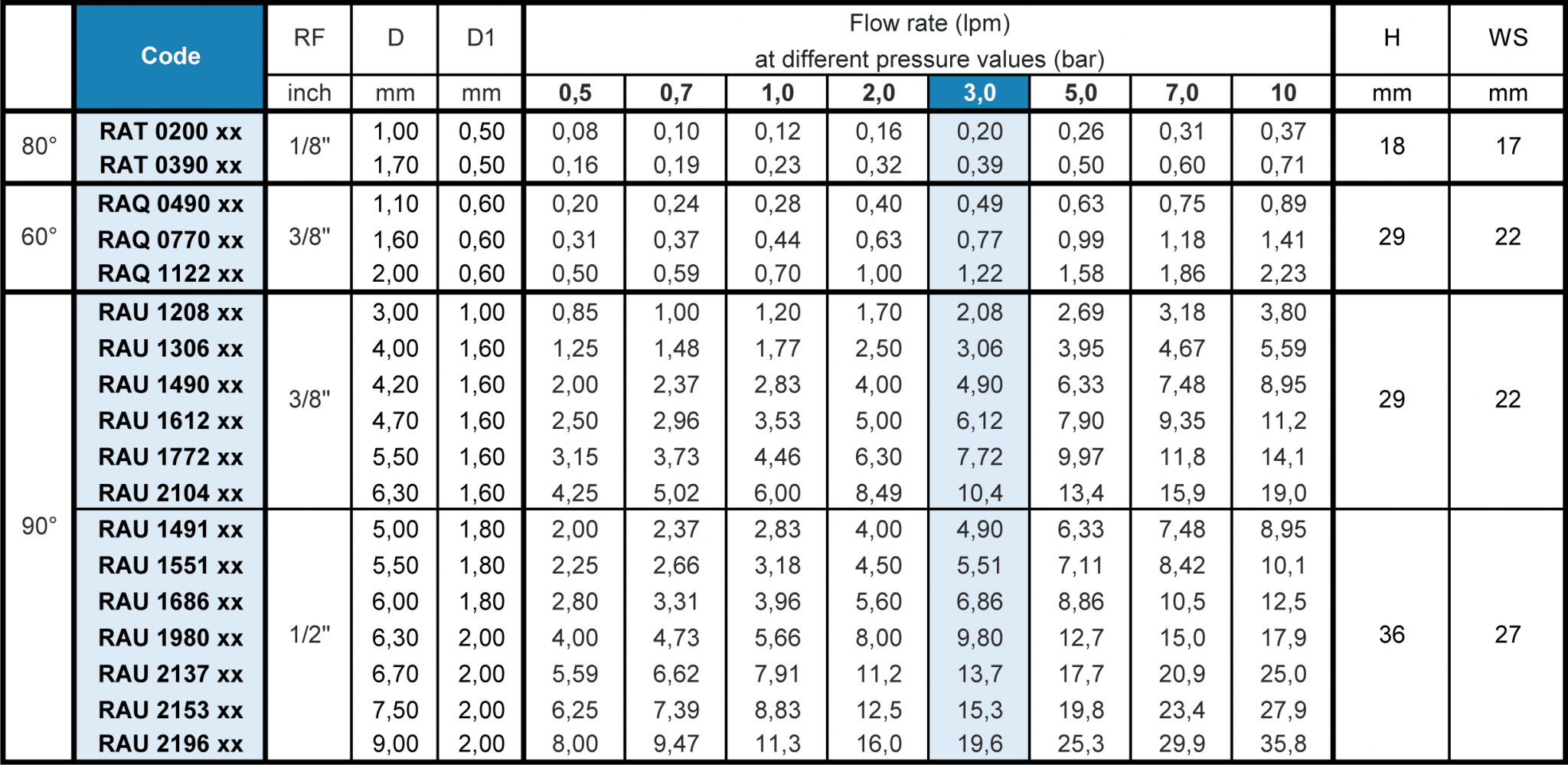

Flow Rate Table(s)

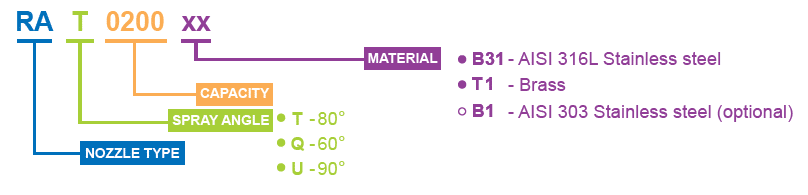

How to make up the Nozzle code
