ZPQ – Lever Pipe Clamps
Pipe size: 1 1/4″- 1 1/2″ Spray angle: N/A, Capacity: N/A, Material: Glass Filled PPPins: AISI 302O’ring: NBR
Flow Rate
N/A
Material
Body: PP, chemically bonded fiberglass Pin, bolt: AISI 316L s.s. O-ring: NBR Seal: PP soft
Connection
None
Description
ZPQ – Lever Clamps

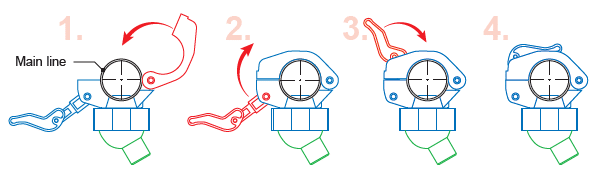

ZPQ cam and lever clamps are specially designed for HGQ, RGN and ZBA ball nozzles. Only three steps to install them on a pipe: drill a hole, wrap the cam around the pipe and pull the lever down to block it. No need for tools. The body is in PP chemically bonded fibreglass whereas accessorial bolts and screws are made in stainless steel AISI 316. ZPQ swivel nozzles with cam and lever clamps provide excellent performance at high temperatures and easy spray jet orientation.
Pipe size: 1 1/4″- 1 1/2″
Material: Glass Filled PP Pins: AISI 302 O’ring: NBR
Typical application: Cleaning, surface pre-treatment lines
Product Enquiry
Technical Info

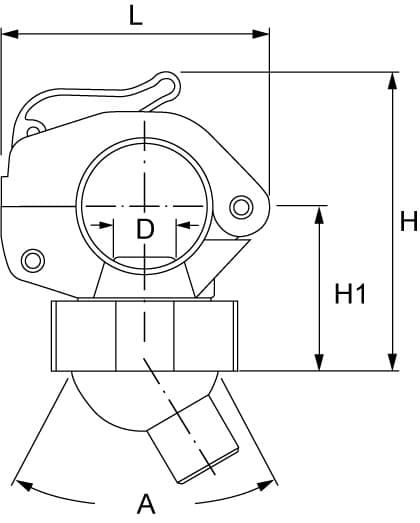

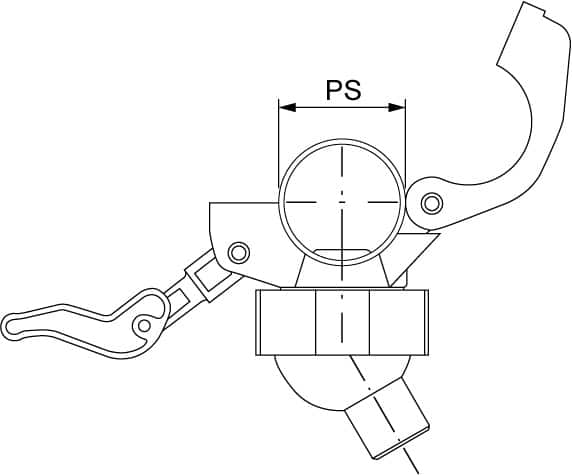

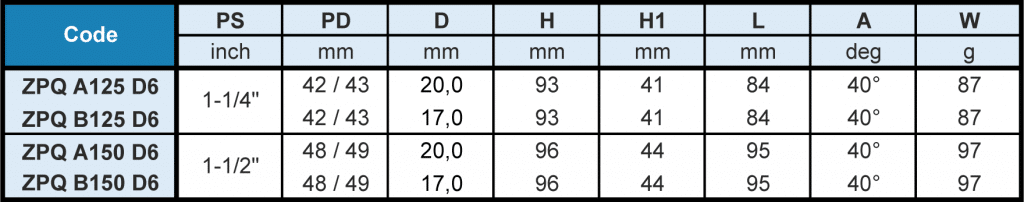

Dimensional Table(s)

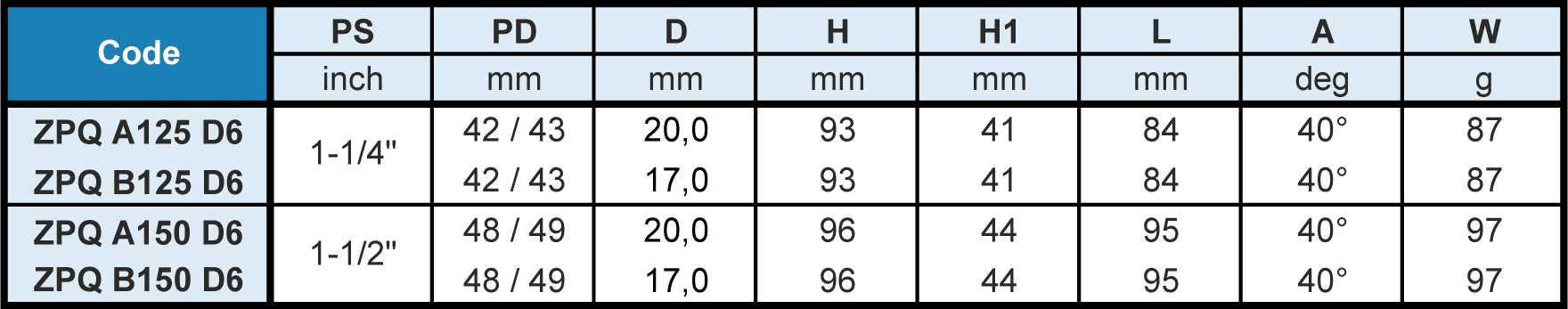

Flow Rate Table(s)
How to make up the Nozzle code
