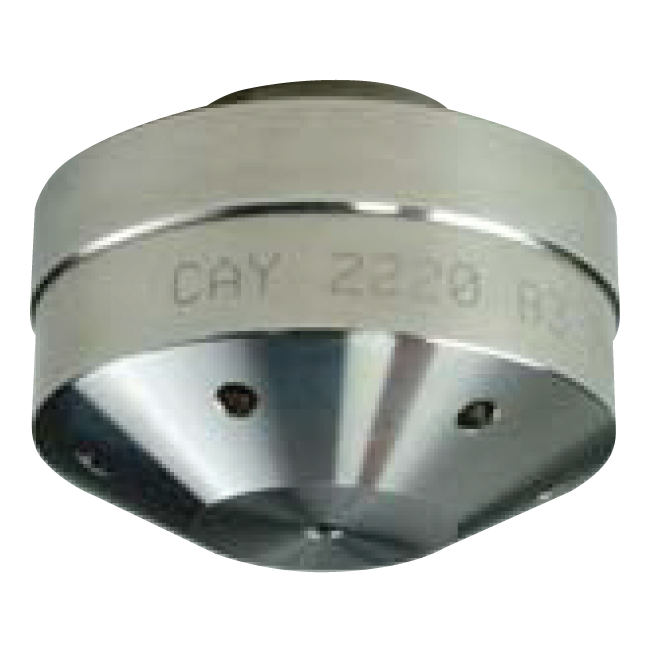

CAY – Cluster Nozzle
Connection: 1/2″ to 2″ BSP, Spray angles: 130°, Capacity: 1.53 – 490 L/min, Material: AISI 303, AISI 316, Brass
Flow Rate
lpm@3bar(1.53 to 490)
Material
AISI 316L s.s. Brass Ni-plated Brass
Connection
AISI 316L s.s. Brass Ni-plated Brass
Description
CAY – Cluster Nozzle CAY full cone nozzle produces very fine droplets using hydraulic pressure only. They provide large spray capacities, mist effect and a 130° spray angle with wider coverage. CAY nozzles have 7 orifices that, at the same operating pressure and using the same quantity of liquid, produce a finer spray than standard full cone nozzles with one orifice only. They are the best choice when mist effect is required, even with large capacities.
Connection: 1/2” – 2” BSP
Spray angles: 130° Capacity: 1.53 – 490 L/min
Material: AISI 303, AISI 316, Brass
Typical applications –
Cooling: cooling of high-temperature gas
Washing: tank cleaning, parts cleaning
Fire control: water mist fire suppression systems
Other applications: exhaust gas treatment, dust suppression, wetting
Product Enquiry
Technical Info

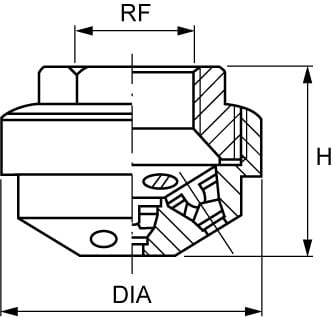

Dimensional Table(s)

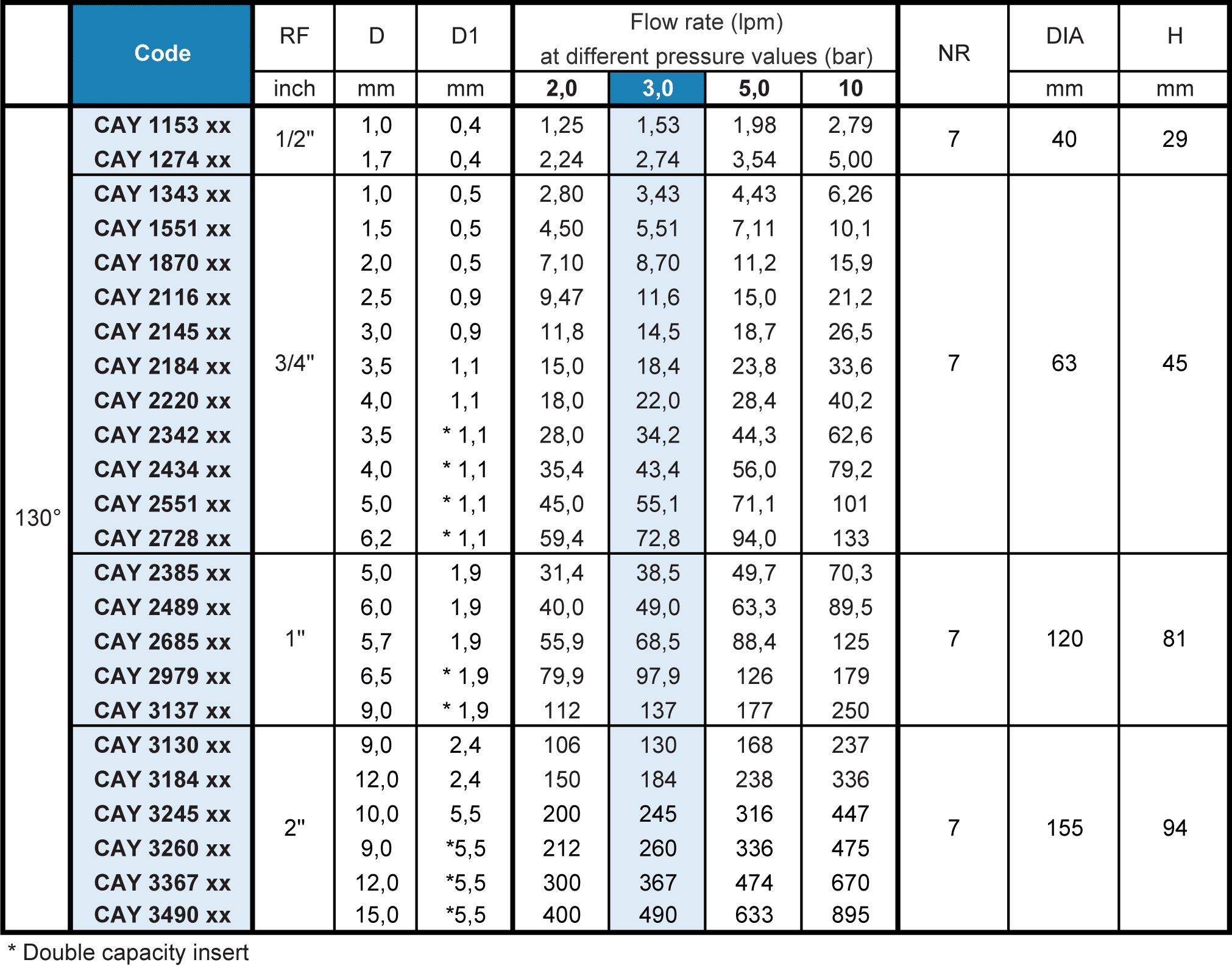

Flow Rate Table(s)

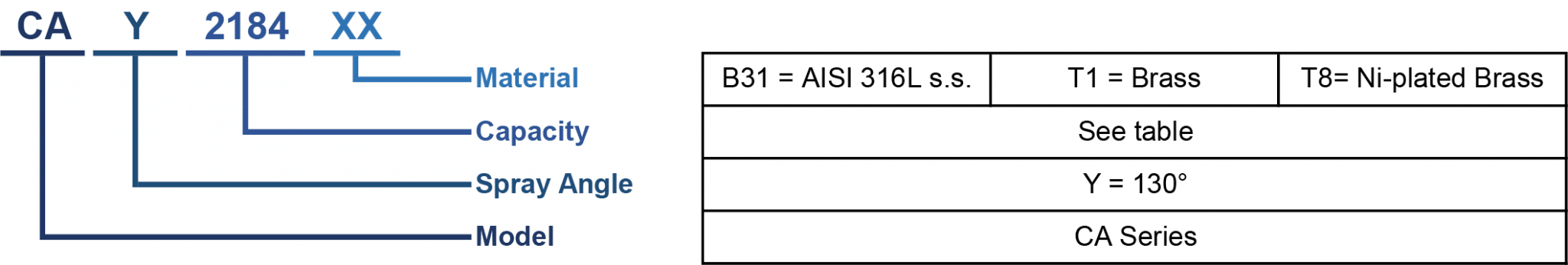

How to make up the Nozzle code
