MX – Automatic Atomising Nozzle
Connection: 1/8″ to 1/2″ BSP, Spray angle: Variable, Capacity: Variable L/min, Material: AISI 303, AISI 316, Ni-Plated Brass
Flow Rate
l/h & Nl/min Liquid flow rate (l/h): min = 0,50 max = 250 Air flow rate (Nl/min): min = 10,2 max = 495
Material
AISI 303 s.s., 316L s.s. Nickel Plated Brass
Connection
None
Description
MX – Automatic Atomising Nozzle
Automatic Atomising Nozzle bodies contain an air actuated cylinder that controls the spray operation by means of a needle, opening or closing the water inlet in the liquid nozzle.
Normally the air used for atomizing the liquid flows continuously, while the air to the actuator is used to start and stop the atomizing cycles. For longer idle times between two atomizing cycles, where too much atomizing air would be wasted, sequenced shut-off should be organized for the two airlines.
The air actuator air should be stopped (and the liquid flow interrupted) before atomising air to be sure all liquid inside is completely atomised and dripping is avoided. Conversely, when spray begins, atomising air should be started first so that incoming liquid is atomised without dripping.
Product Enquiry
Technical Info

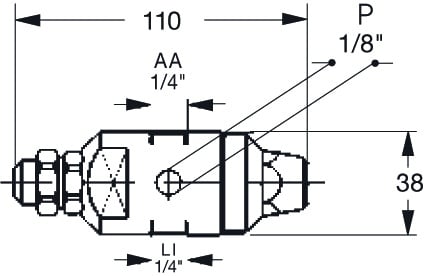

Dimensional Table(s)
How to make up the Nozzle code
Body Type
