UEE – X-AIR Vortex Tube
Flow Rate
113 slpm 708 slpm 2700 slpm @ 7bar
Material
Body: AISI 316L s.s. Valve: Brass Seals: Viton
Connection
Inlet compressed air: 1/8”-1/4”-1/2″ NPT/BSPT Cold air outlet: 1/4”-1” NPT/BSP Hot air outlet: 1/4”-3/4” NPT/BSPT
Description
Vortex tubes are devices capable of generating small volumes of cold or hot air and are traditionally used in the process industry to cool or heat small objects or surfaces.
An incoming compressed air flow is divided into two parts, exiting from two orifices, thus generating hot and cold air.
The advantages of this product lie in the type of power it requires: simply operating with compressed air, you can avoid the problems related to heating and cooling with electricity. In addition, having no moving parts, they do not require any maintenance and do not show wear even after years of use.
X-AIR vortex tubes from PNR Italia are manufactured in quality stainless steel and tested in our laboratories to provide optimal performance.
| TEMPERATURE OUTLET AIR | – 46°C | + 127°C |
| TEMPERATURE | Max. working temperature: 127°C Max. ambient temperature: 150°C |
| PRESSURE | Compressed air pressure: 7 bar (MAX 8 bar) |
Product Enquiry
Technical Info

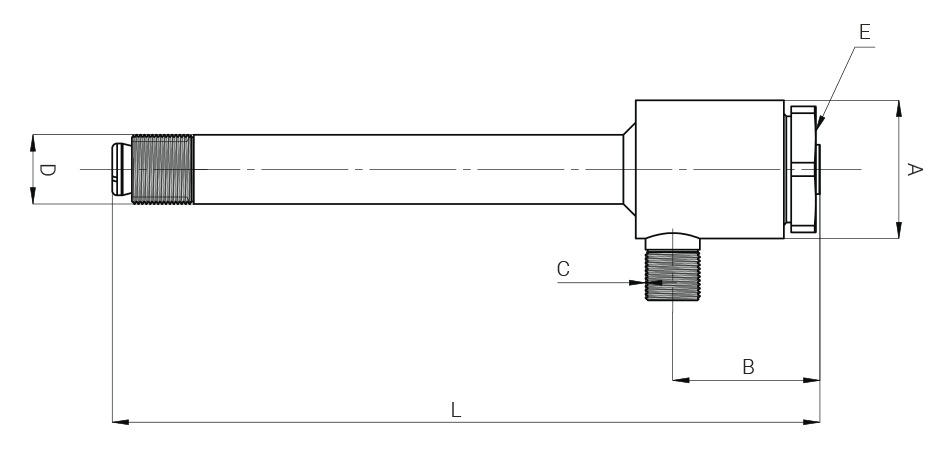

Dimensional Table(s)

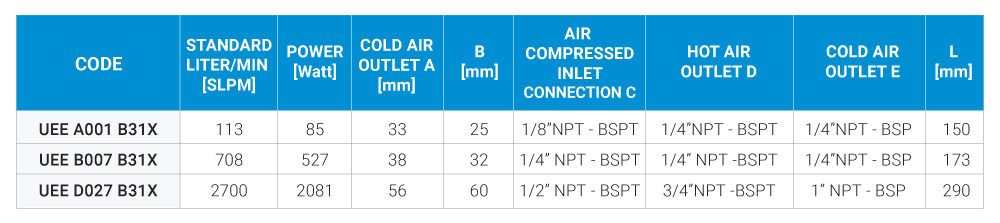

Flow Rate Table(s)

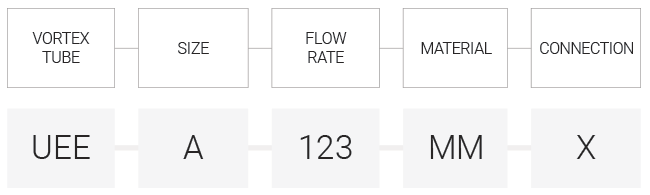

How to make up the code
Product Datasheet
Please login, to download the Data Sheet
