GE – Disc Fan Nozzles
Connection: Special, Spray Angle: 0°, 60°, 75°, Capacity: 0.17-23 L/min, Materials: AISI 316TI,Ruby
Flow Rate
lpm@3bar(0.17 to 23)
Material
AISI 316Ti s.s. AISI316Ti s.s. body 303 body, ruby insert 316L body, ruby insert
Connection
Nipple + Locknut
Description

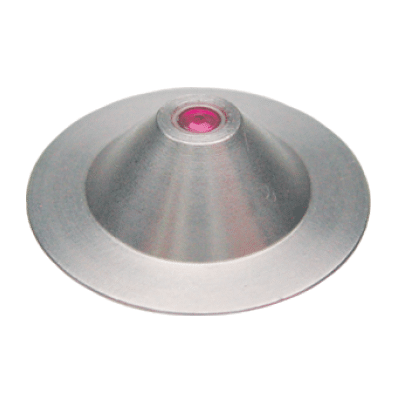

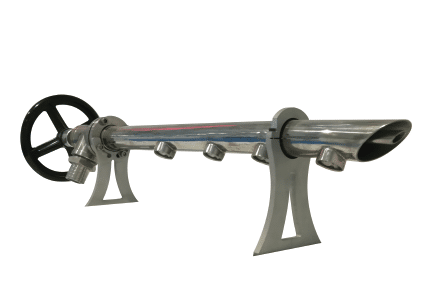

GE – Disc Fan Nozzles The GE series disc nozzles have a thickness of 1.2mm, which makes this special design very easy to clean. The supply pipe for these nozzles are assembled with an internal steel brush, that can be manually or automatically rotated, cleaning off any dirt or build up and flushing it out through a release valve positioned at the end of the pipe. Disc nozzles, with their special low profile design, can be easily removed for cleaning so they reduce maintenance times and costs and improve the plant efficiency.
Spray Angle: 0, 60, 75°
Capacity: 0.17-23 L/min
Materials: AISI 316TI, Ruby inserts available.
Typical applications – washing or spraying in pulp and paper mills, mesh fabrics cleaning, water treatment systems, screen and filter (felt and wire) washing and many more.
Product Enquiry
Technical Info

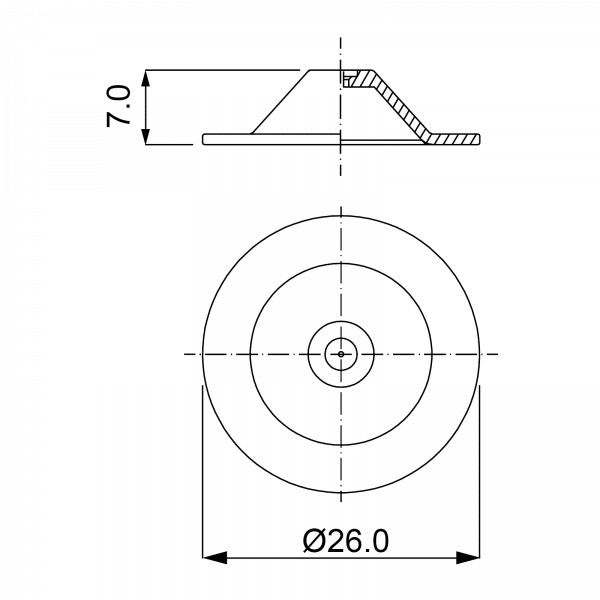

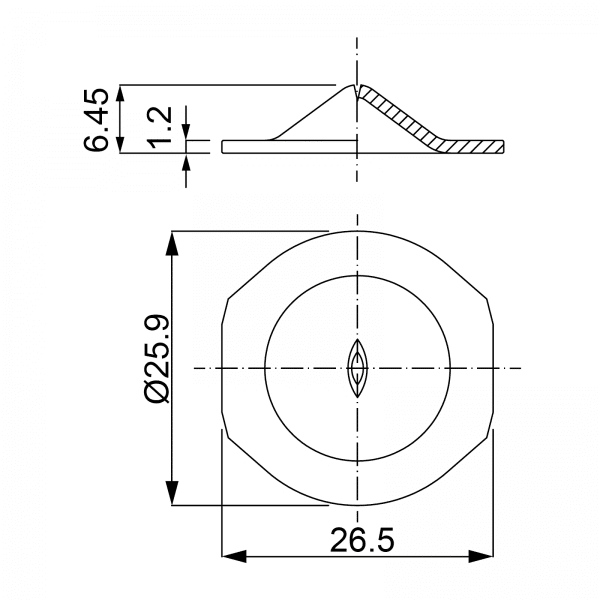

Dimensional Table(s)

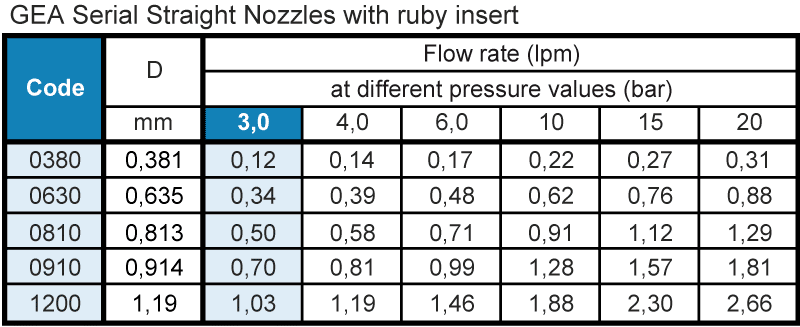

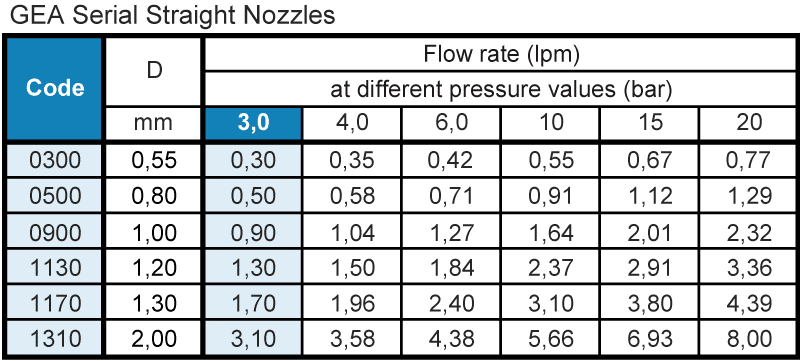

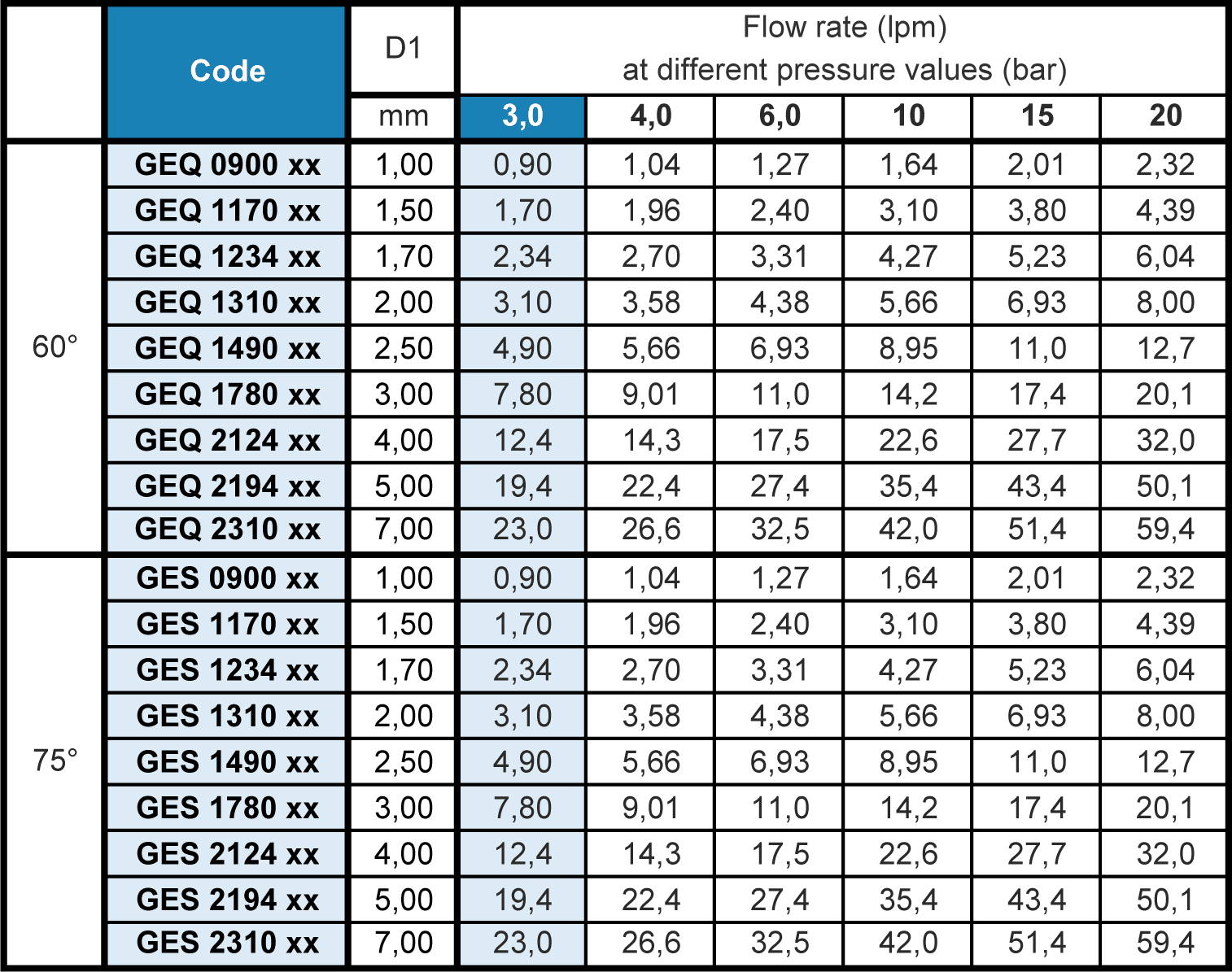

Flow Rate Table(s)

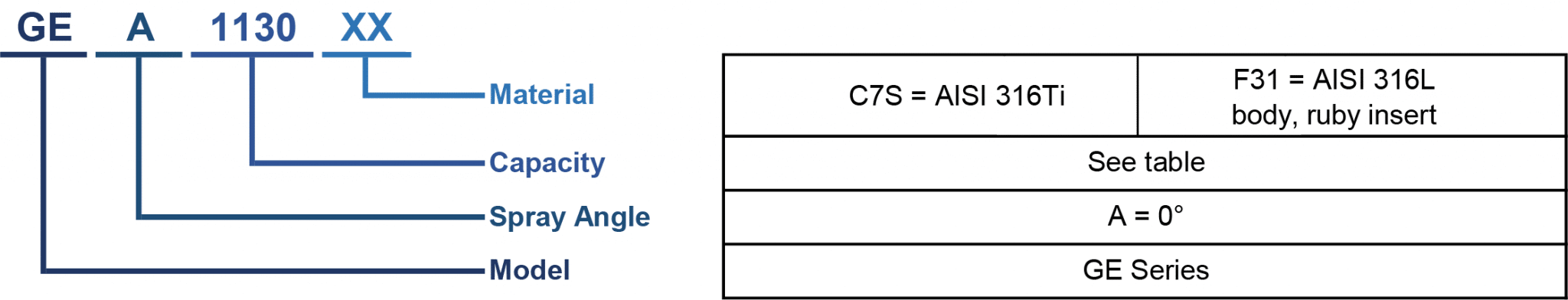

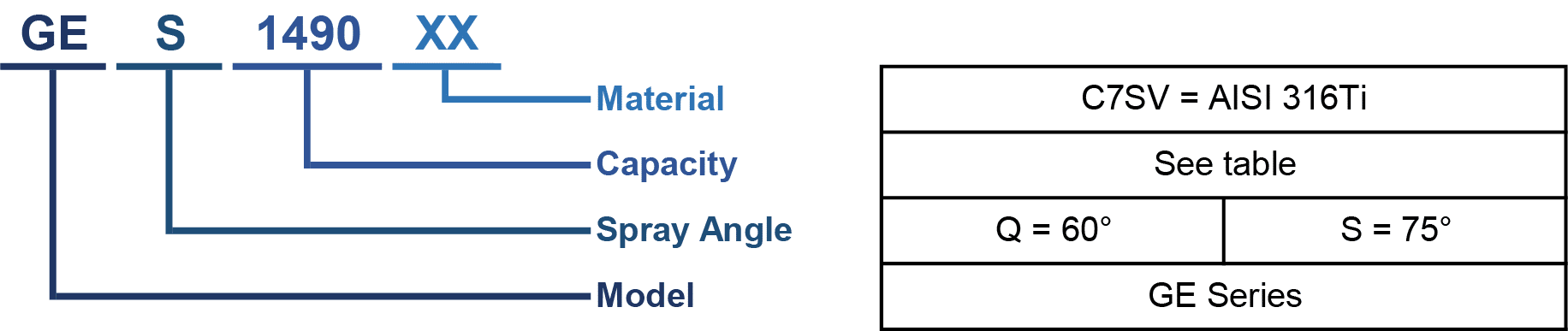

How to make up the Nozzle code

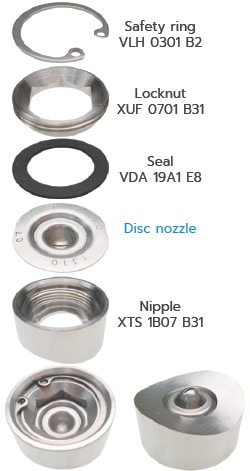

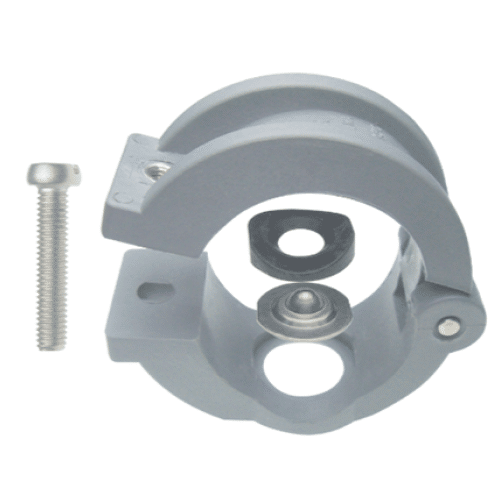

Accessories Fittings
