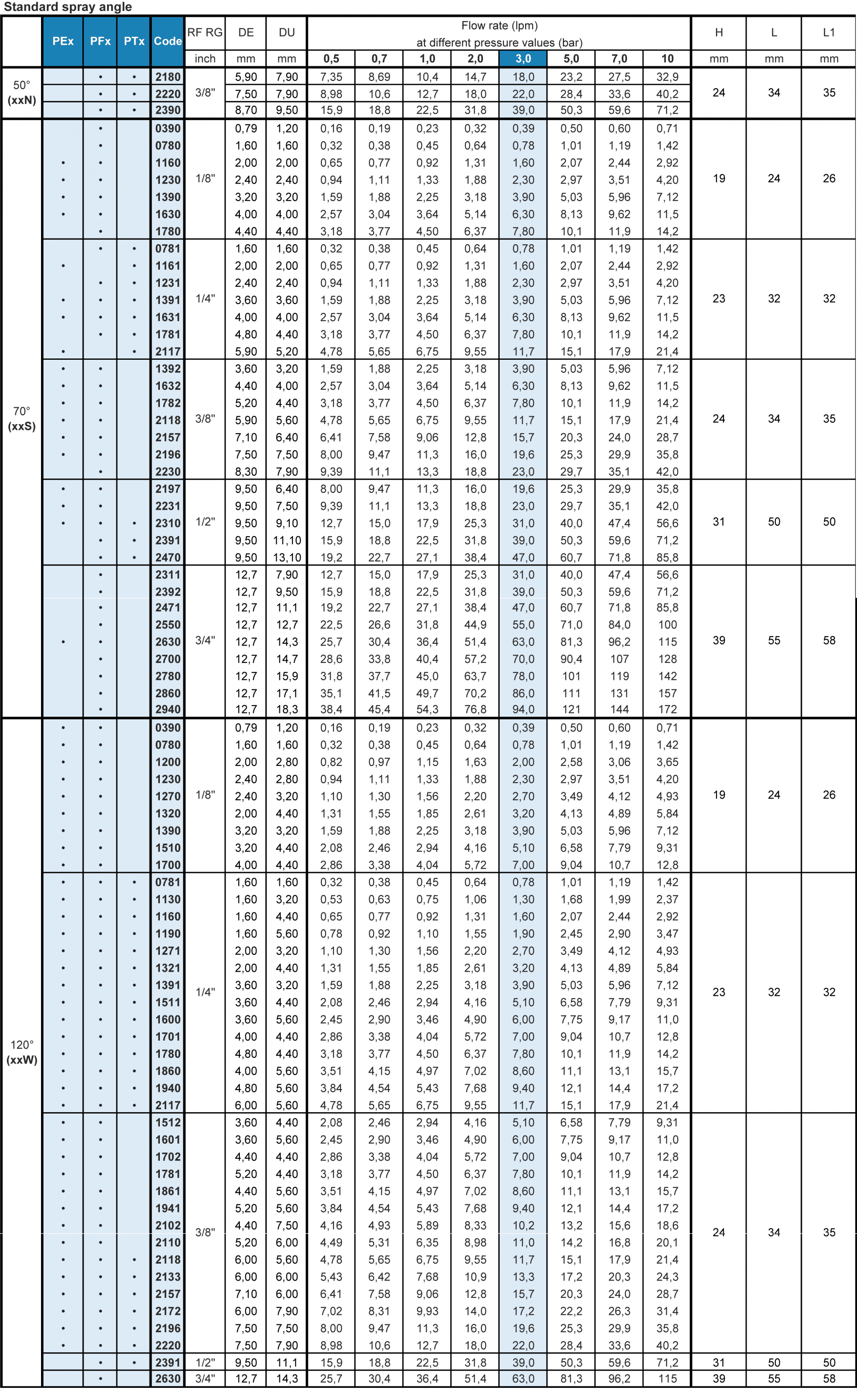

Flow Rate
lpm@3bar(0.39 to 94.0)
Material
AISI 303 s.s. AISI 316L s.s. Brass
Connection
emale BSPT, NPT Male BSP, NPT Quick
From 1/8″ to 3/4″
Description
PE/PF/PT – Tangential Cone Nozzle PF hollow cone nozzles generate a ring-shaped spray pattern with finely atomized droplets and work on the tangential flow principle. Inside these nozzles, there is an axial groove that injects the liquid tangentially into the vortex chamber where the strong centrifugal force produces a high rotational velocity and generates a finely atomized liquid flow. As these nozzles have a large inside free passage and no swirl insert, they offer the maximum resistance to clogging.
PE/PF nozzles are widely used in many production processes and their variety of spray angles and capacities make them suitable for all kinds of working environments
Thread: 1/8″- 3/4″
Spray angle: 70- 120°
Capacity: 0.39- 63 L/min
Material: AISI 303, AISI 316L, Brass
Typical applications –
Washing: exhaust scrubbers, desulphurisation, denitrification
Cooling: cooling of high-temperature gas, product cooling
