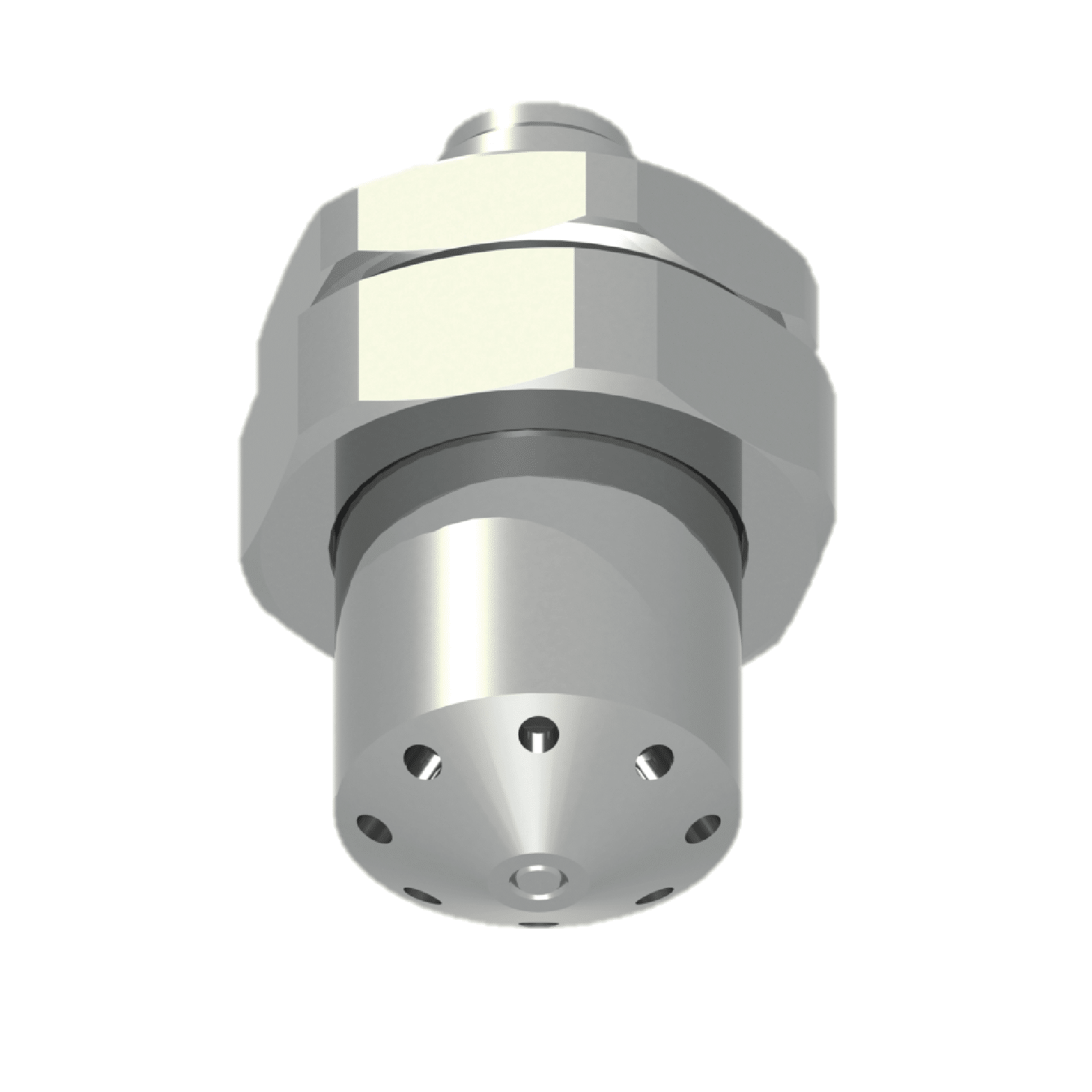

MF – Full Cone Atomising Nozzle
Connection: 1″-14 – UNS, Spray angle: 20° to 55°, Capacity: 3 to 116 L/min, Material: AISI 316L, Titanium Gr2, Hastelloy C22
Flow Rate
lpm 3 to 116
Material
AISI 316L s.s. Titanium Gr2 Hastelloy C22
Connection
1″ – 14 – UNS
Spray angle
20° – 55°
Description
MF – Full Cone Atomising Nozzle
Many industrial processes require gas cooling, fume suppressions or the injection of chemicals. In these applications, it is necessary to use suitable air atomizing nozzles. PNR bi-phase nozzles MF series are nozzles specifically designed to improve the efficiency of the manufacturing processes with reduced energy consumption and a low clogging risk.
The special geometry of the MF air atomizing nozzles provides a uniform spray pattern and small droplets.
Product Enquiry
Technical Info

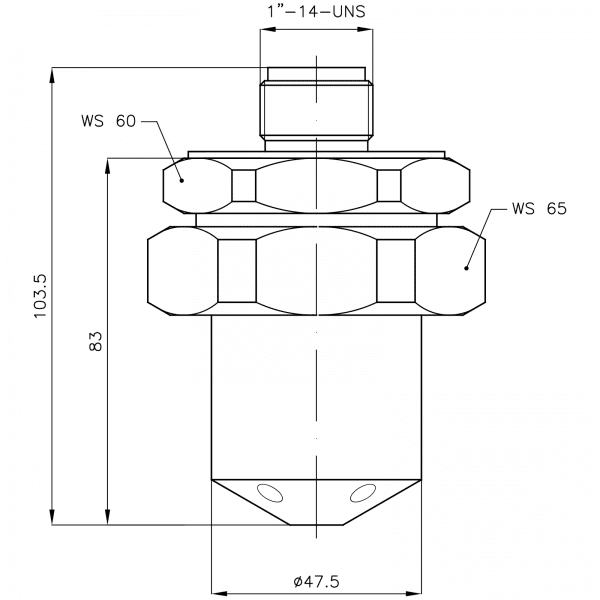

Dimensional Table(s)

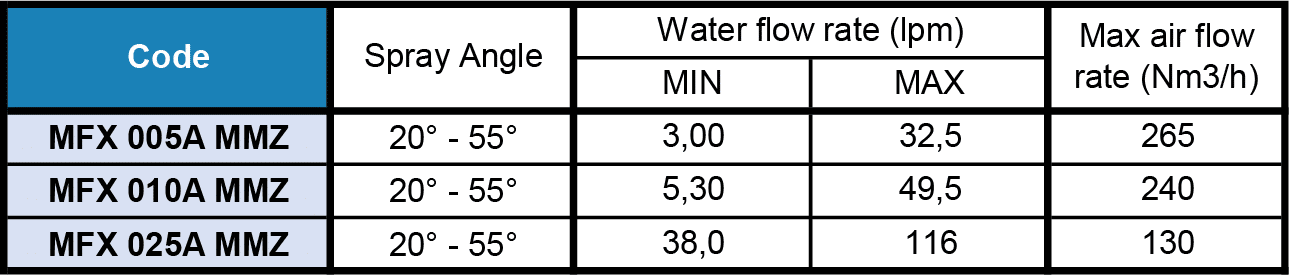

Flow Rate Table(s)

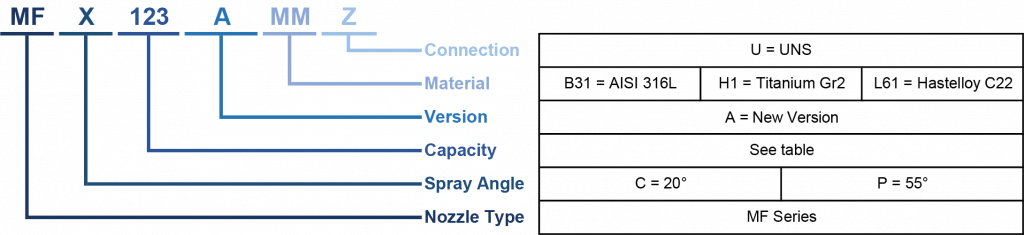

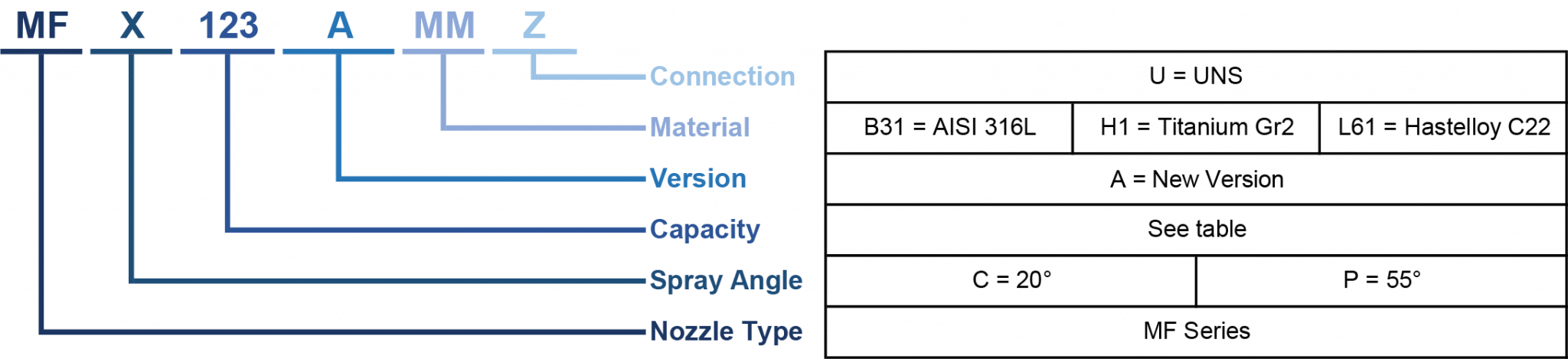

How to make up the Nozzle code

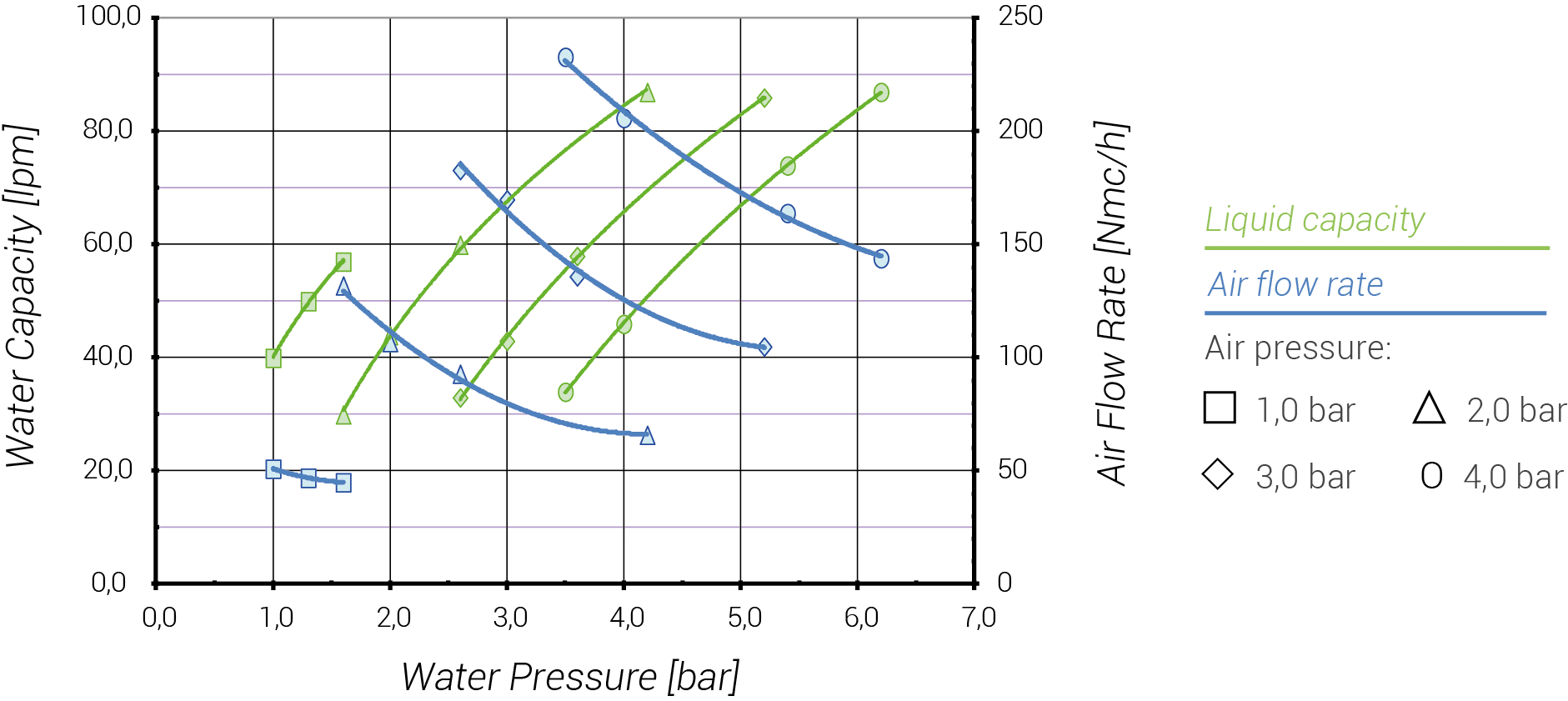

Spray Performance Curves
