GZS – Air & Steam Nozzles
Connection: Flanged Tip, Spray angle: 70°, Capacity: 3-31.5 Nm³/hour (2bar), Materials: AISI 303, AISI 316, Brass
Flow Rate
lpm@2bar
Material
AISI 303 s.s. AISI 316L s.s. Brass
Connection
Flanged nozzle tip: nipple + locknut
Description
GZS – Air & Steam Nozzles
GZS air and steam nozzle fan tips are ideal for air, gas or steam applications. They are widely used for drying processes, water removal from surfaces, flocks and water blow off.
Thread: 1/4″
Spray angle: 70°
Capacity: 3-31.5 Nm³/hour (2bar )
Materials: AISI 303, AISI 316, Brass
Typical applications: water removal from surfaces, flocks and water blow off Connection: flanged nozzle tip Nipple & Locknut
Product Enquiry
Technical Info
Dimensional Table(s)

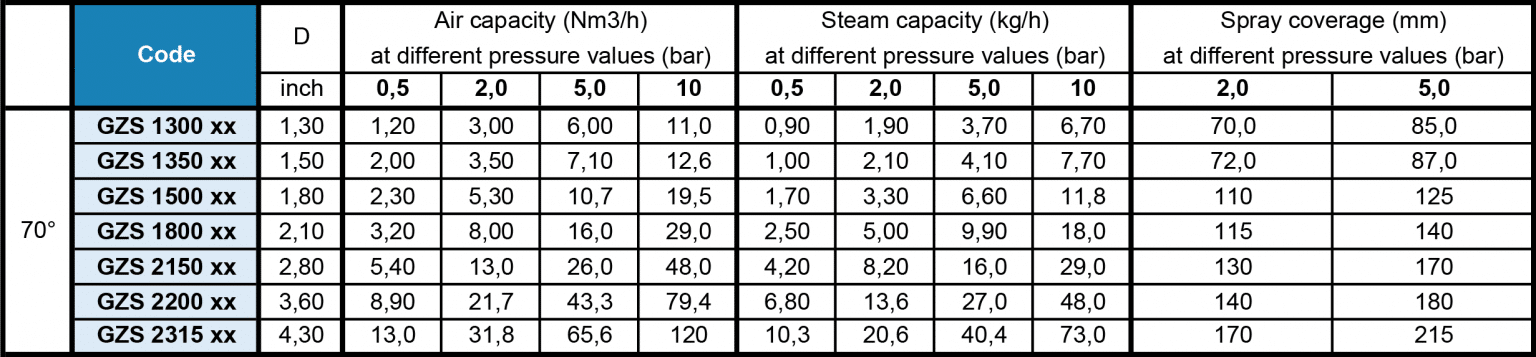

Flow Rate Table(s)

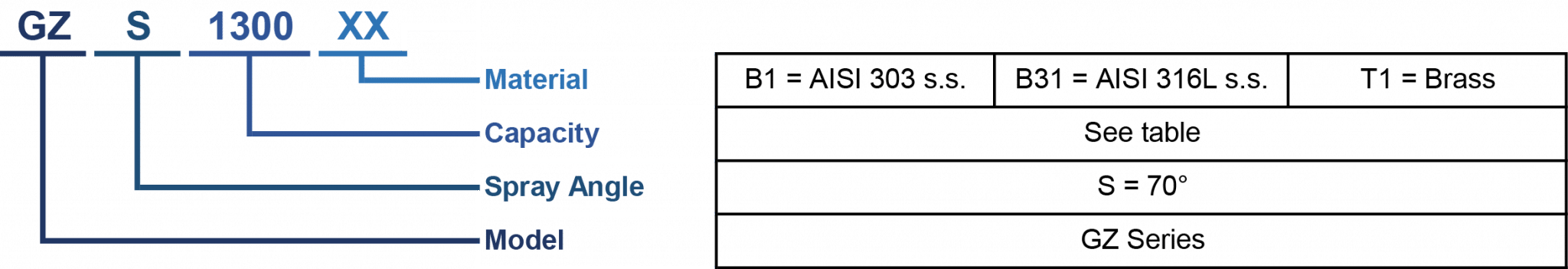

How to make up the Nozzle code

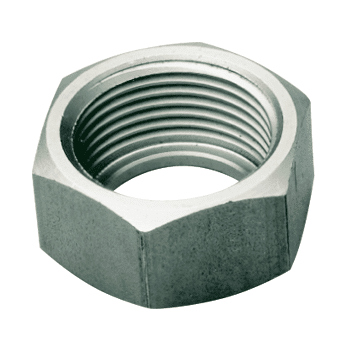

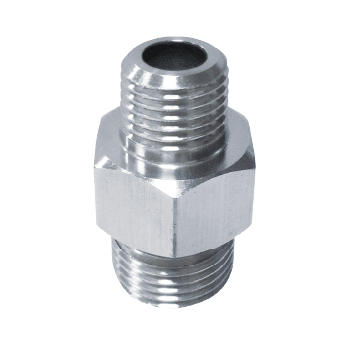

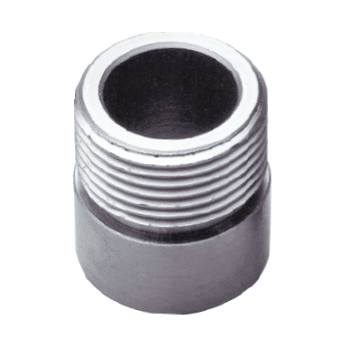

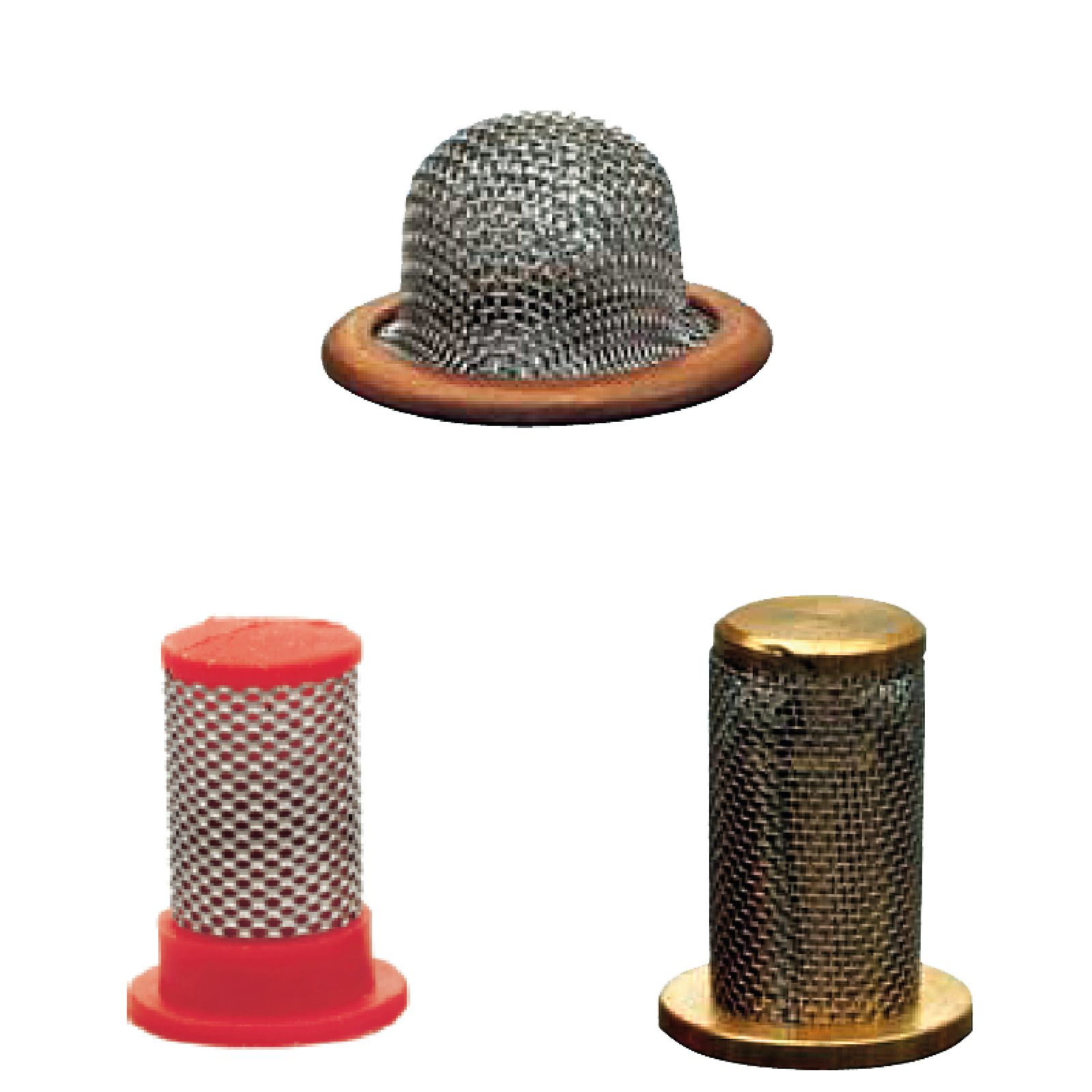

Accessories Fittings
