BB/BD – Square Pattern Nozzle
Connection: 1/8″ to 1/2″ BSP, Spray angle: 60°, Capacity: 2.7 – 27 L/min, Material: AISI 303, AISI 316, Brass
Flow Rate
lpm@3bar(2.7 to 27.0)
Material
AISI 303 s.s. AISI 316L s.s. Brass (opt.)
Connection
Male BSPT, NPT Female BSP, NPT
From 1/8″ to 1/2″
Description

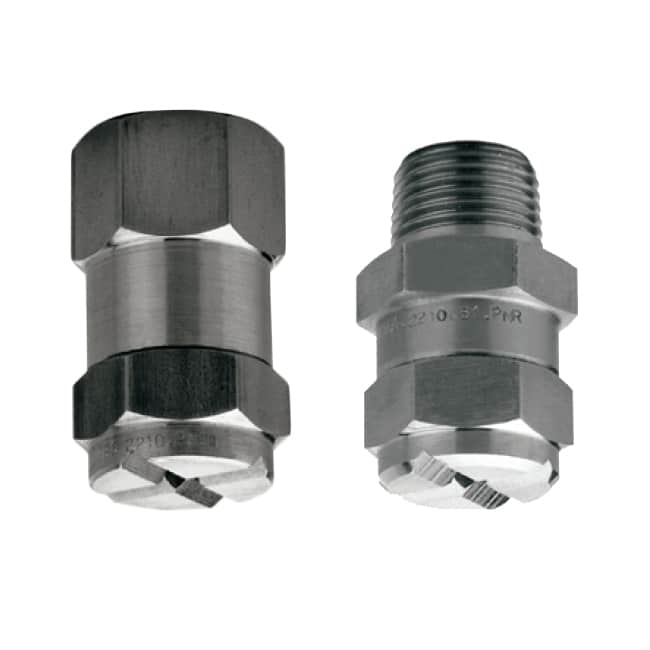

BB/BD – Square Pattern Nozzle BB/BD series full cone nozzles offer a three-piece design made of body, X-vane and connection. BB/BD series nozzles supply a square section spray pattern and are suitable for working environments that strictly require uniform coverage. The most important feature of BB/BD series nozzle is their X-vane which can be easily disassembled. It is mounted between its body and connection, allowing the narrowest passage to avoid clogging. A great choice to solve clogging problems.
BB/BD series nozzles produce a square spray pattern. The flat spray orientation is set with a 10°-15° offset angle from the main manifold axis to avoid jet overlapping. Therefore, the correct alignment of these nozzles is very important and must be done properly.
Connection: 1/8” to 1/2“ BSP
Spray angles: 60°, 120°
Capacity: 0.74 – 36 L/min
Material: AISI 303, AISI 316, Brass
Typical applications –
Washing: exhaust scrubbers, parts cleaning, pre-treatment for coating processes
Cooling: exhaust gas cooling, tank cooling
Coating: oil coating, spray of chemicals
Other applications: dust control, leak test
Product Enquiry
Technical Info

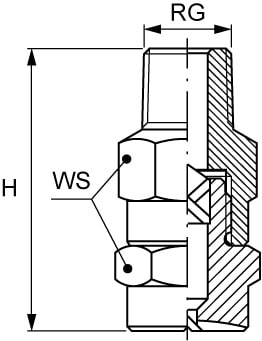

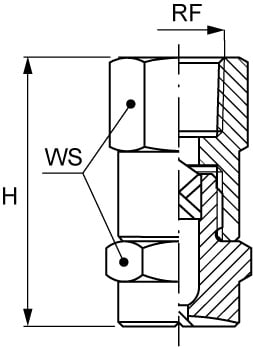

Dimensional Table(s)

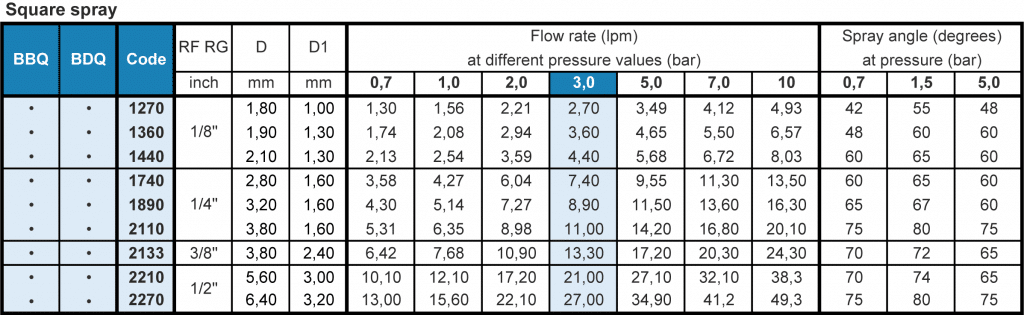

Flow Rate Table(s)

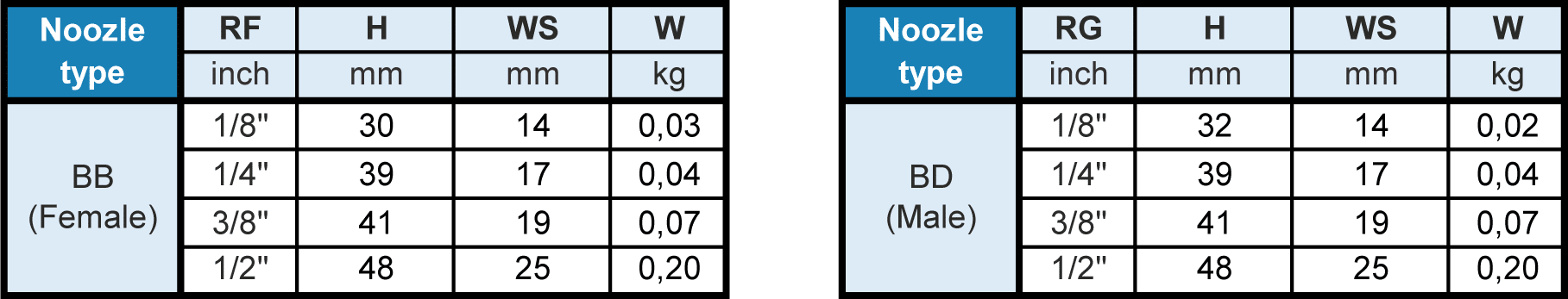

Dimensions and Weights
