BA/BC – Cleanable Full Cone Nozzle
Connection: 1/8″ to 1/2″ BSP, Spray angles: 60°, 120°, Capacity: 0.74 – 36 L/min, Material: AISI 303, AISI 316, Brass
Flow Rate
lpm@3bar(0.74 to 36.0)
Material
AISI 303 s.s. AISI 316L s.s. PTFE, Brass Hastelloy C22
Connection
Male BSPT, NPT Female BSP, NPT
From 1/8″ to 1/2″
Description

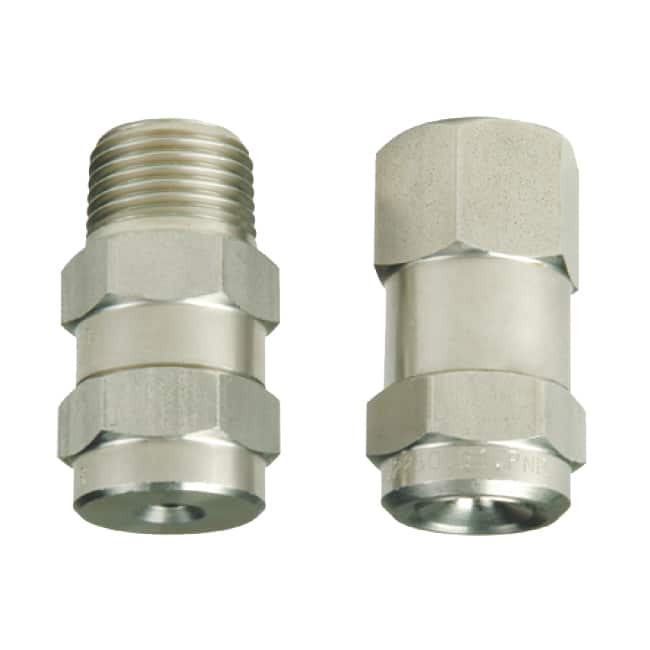

BA/BC – Cleanable Full Cone Nozzle BA/BC series full cone nozzles have a three-piece design made of body, X-vane and nipple. Their X-vane design combines resistance to clogging with the convenience of an easy and fast inside cleaning as they can be easily disassembled for maintenance.
When these nozzles are mounted to spray upwards, the design of the nipple removes risk of the vane dislodging and becoming lost. BA/BC nozzles are available with a female (BA) or male (BC) inlet thread nipple.
Connection: 1/8” to 1/2” BSP
Spray angles: 60°, 120°
apacity: 0.74 – 36 L/min
Material: AISI 303, AISI 316, Brass
Typical applications –
Washing: Exhaust scrubbers, Parts cleaning, Pre-treatment for coating process
Cooling: Exhaust cooling, Tank cooling
Dust control: Suppress airborne dust in mining and coal plants.
Other applications: Spray of chemicals, Fire control
Product Enquiry
Technical Info

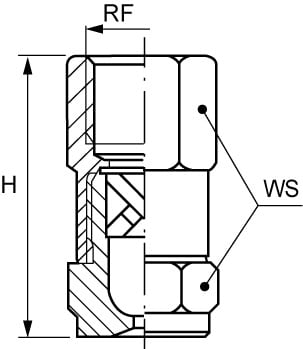

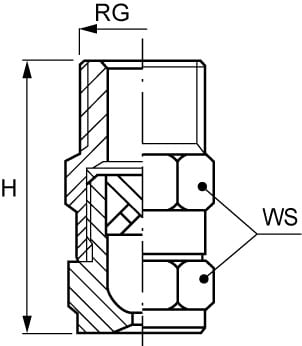

Dimensional Table(s)

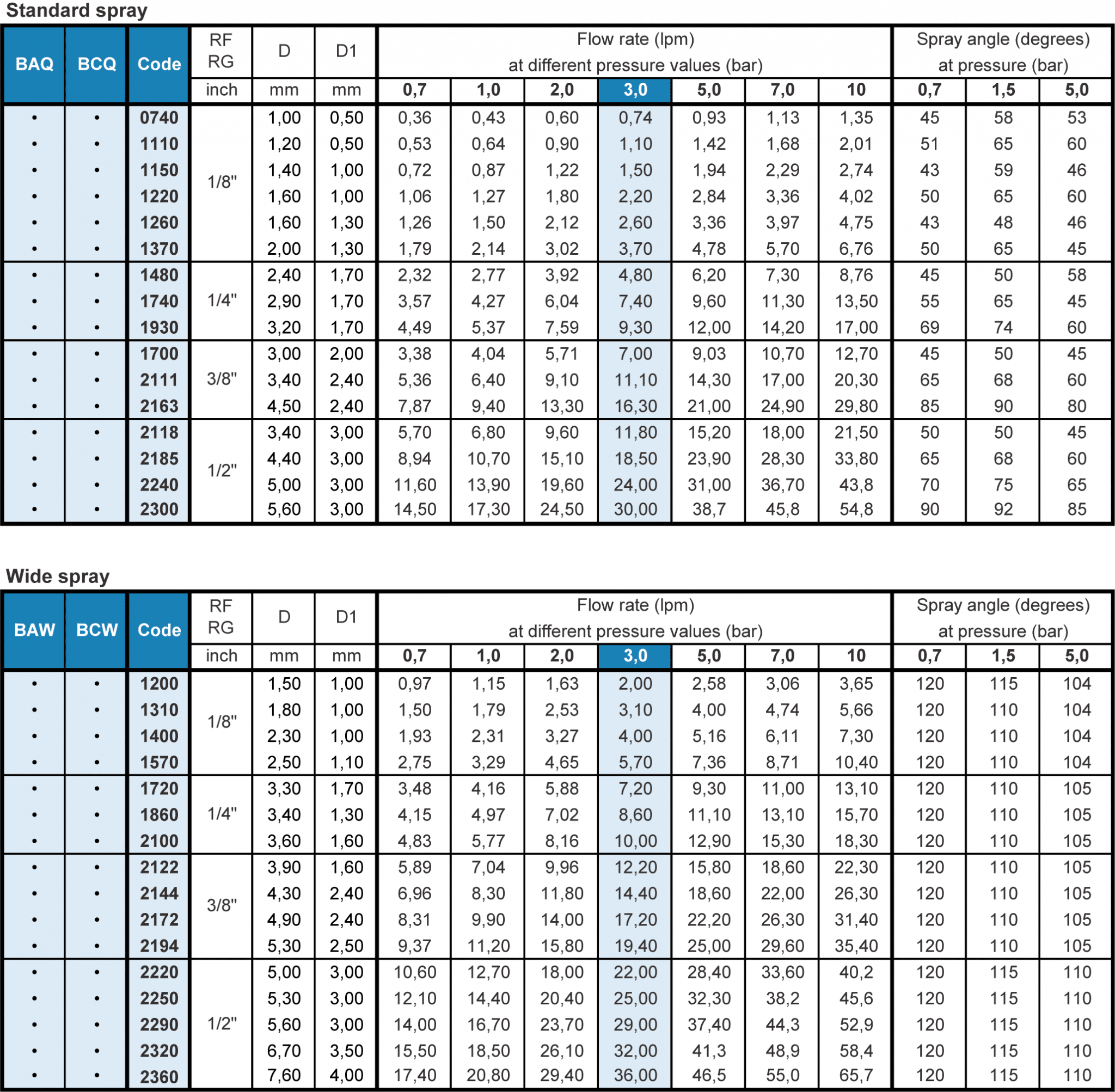

Flow Rate Table(s)

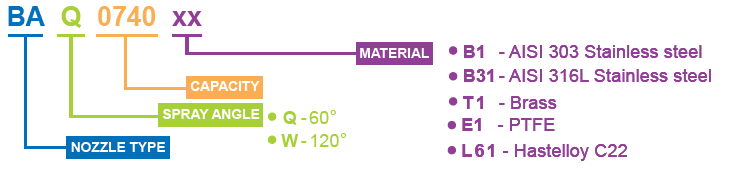

How to make up the Nozzle code

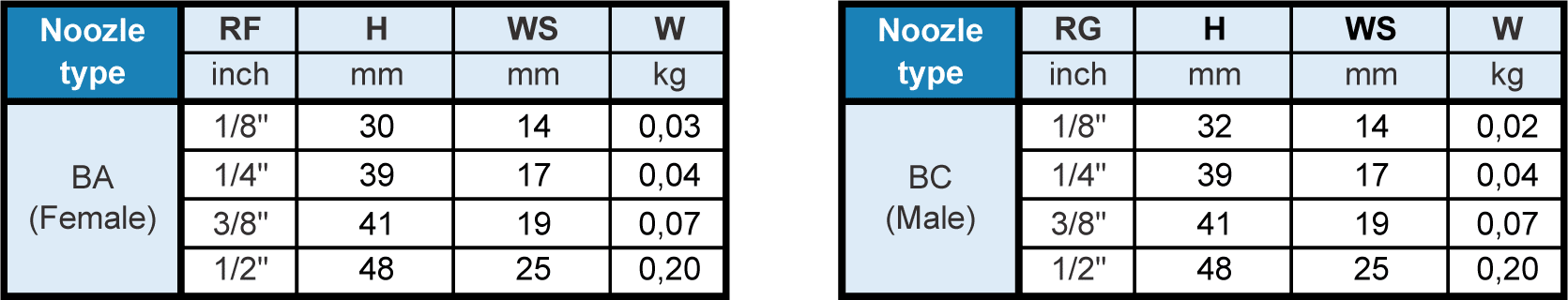

Dimensions and Weights
