Description

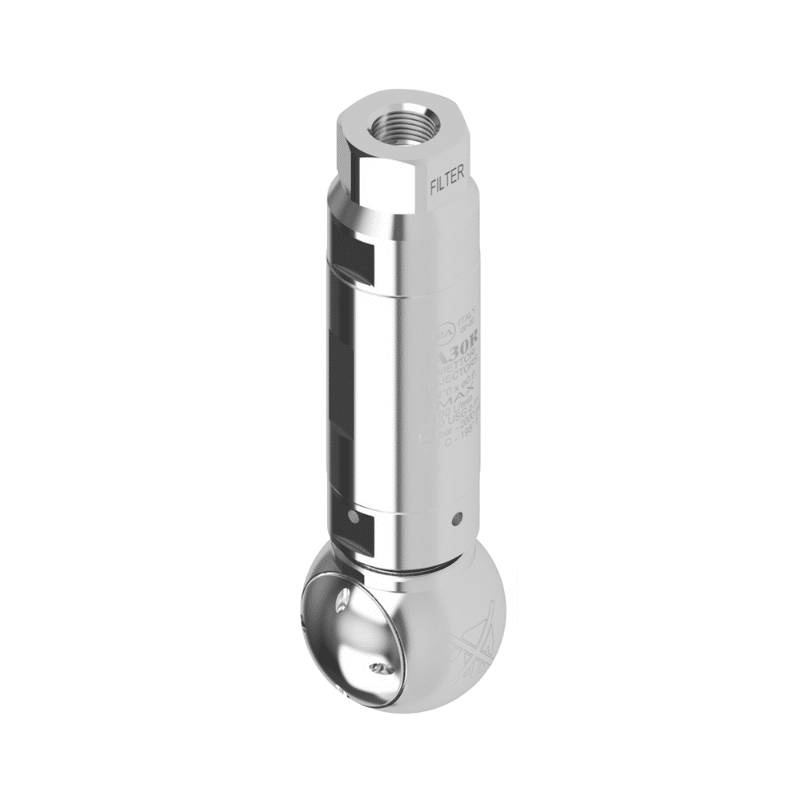

SELF ROTATING CLEANING HEAD
– This is a self-propelled tank cleaning head: when the flow rate increases, the head rotates faster.
– Cleaning of interior surfaces of tanks and drums up to 3.5m diameter.
– Reduced flow, high pressure, high cleaning impact. From 9-33 L/min at 30-160 bar pressure.
– Complete orbital coverage of all interior surfaces.
– Rotating speed independent from water temperature.
– Inlet filter.
– Stainless steel construction.
– Suitable for utilization in food industry.

TECHNICAL SPECIFICATIONS
– RATED PRESSURE 30 – 140 bar – 3 – 14 Mpa (435 – 2000 psi)
– PERMISSIBLE PRESSURE 160 bar – 16 Mpa (2300 psi)
– FLOW RATE 9 – 33 L/min (2,4 – 8,7 USG p.m.)
– MAX WORKING TEMPERATURE 0 – 90° C (32 – 195° F)
– WEIGHT 2,03 Kg (71,61 oz.)
– MAIN AXIS ROTATING SPEED 20 – 30 giri/min (RPM)
– INLET CONNECTION SIZE G 1/2″
– INLET FILTER 400 µm
– NOZZLE CONNECTION (2 o 4) M4
