ZPN MINI – Mini Spring Pipe Clamp
Flow Rate
N/A
Material
Body: PP, chemically bonded fiberglass Spring: AISI 316 s.s. O-ring: NBR
Connection
New plastic pipe clamps: ZPN mini
Description

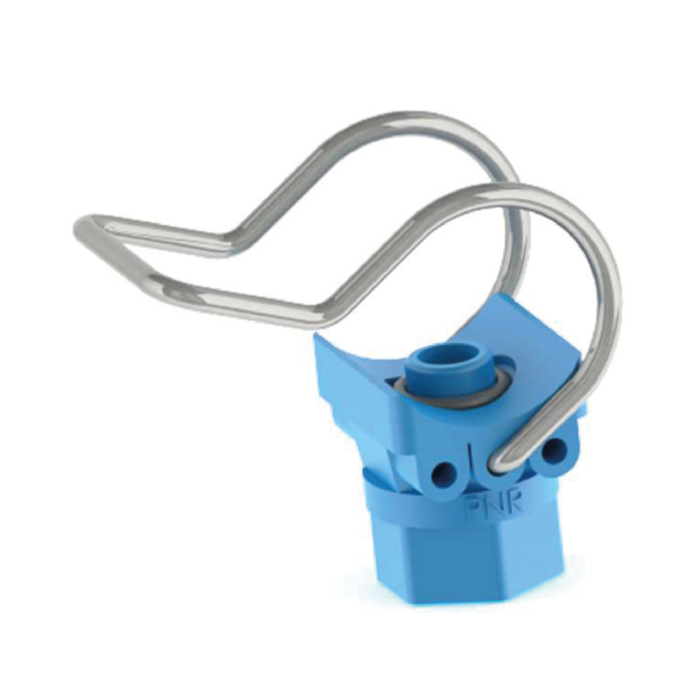

MINI SINGLE SPRING PIPE CLAMPS
ZPN MINI spring clamps provide quick connection of 1/8”, 1/4”, 3/8” and 1/2” female threaded to 1/2”, 3/4″ and 1″ pipes. It’s enough make one hole on pipe, insert the clamp with the seal and fix to pipe with the spring. Up to now, only single spring model is available. Models are made of different colours, depending on pipe size (yellow clamp for pipe size 1/2”, green clamp for pipe size 3/4”, blue clamp for pipe size 1”)
Product Enquiry
Technical Info

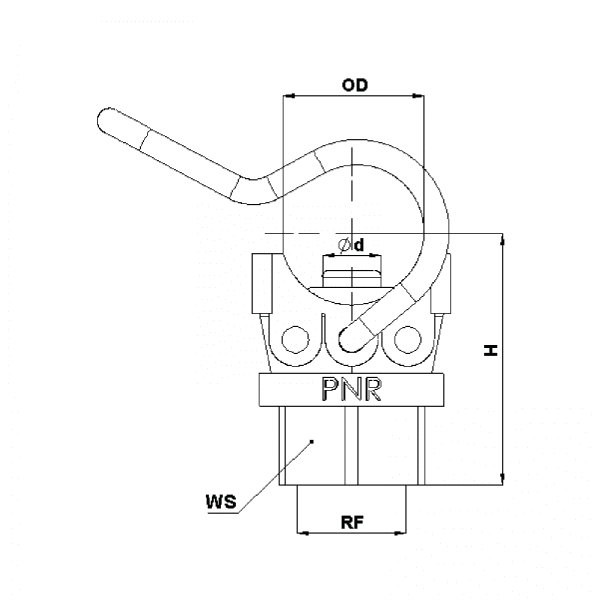

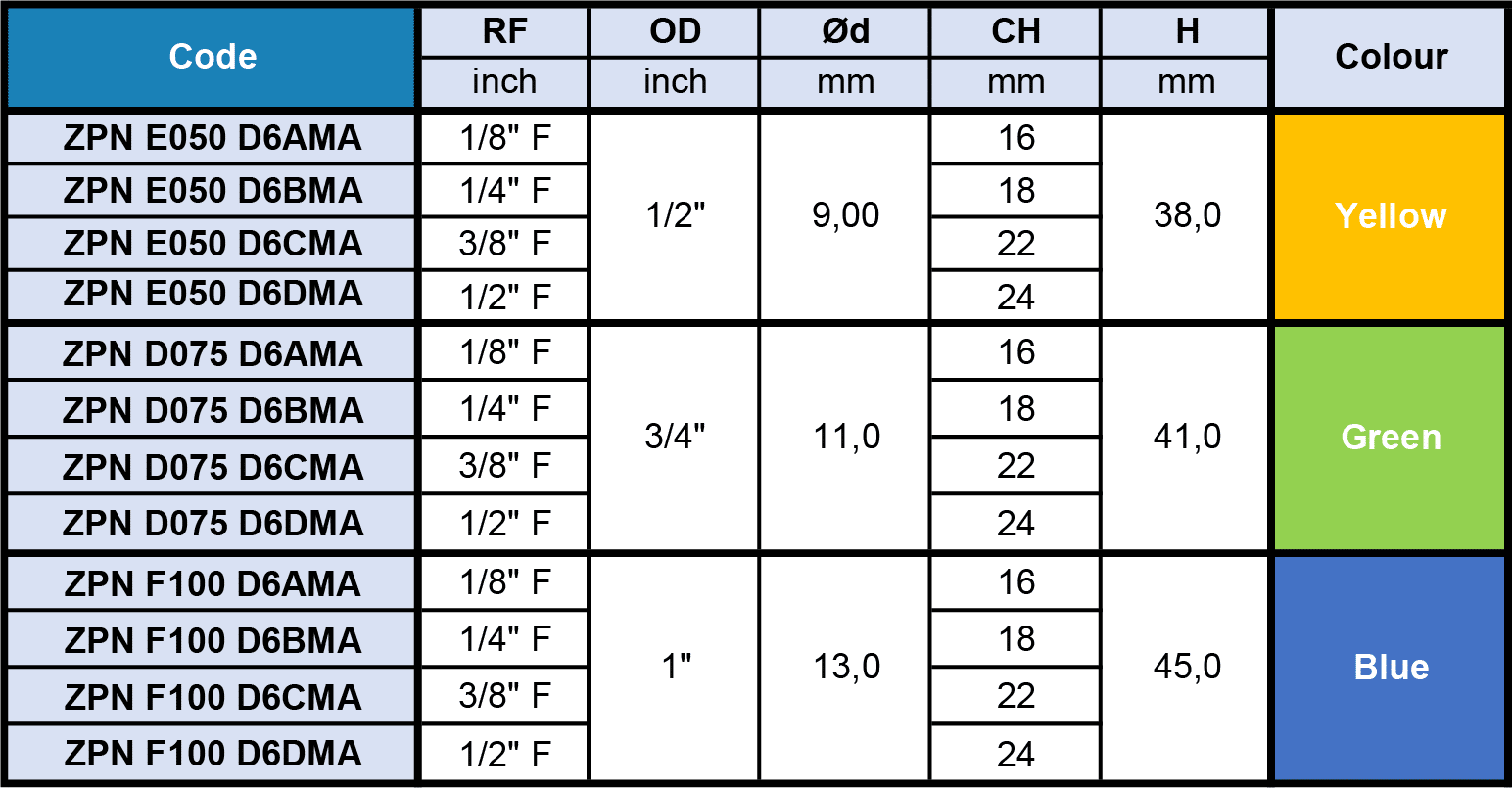

Dimensional Table(s)
Flow Rate Table(s)
