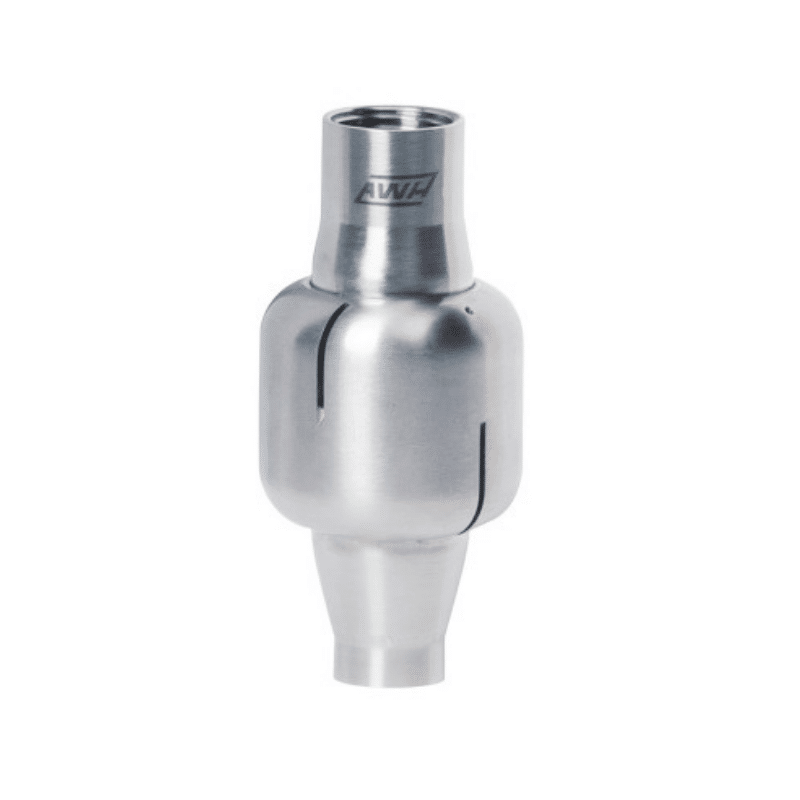

Tanko RPB Spray Ball
Max Cleaning Diameter
1.5m
Flow Rate Range
20 - 42 L/min
Pressure Range
1 - 3 bar
Description
Spate cleaner TANKO-RPB35 360°
That’s how to reduce spray shadows!
One connection nozzle and two spate sources that are installed within one downpipe in different heights reduce the spray shadows at a minimum. The TANKO-RPB35 is available as PEEK-slide bearing and stainless steel ball bearing (1.4401) version with a spray angle of 360°. The base plate and the spray ball are made of the indicated material such as 316L (1.4435) for instance. Supplementing the standard 360° spray angle model, a RPB version with downpipe rinsing for nozzle and downpipe cleaning is also available.
| Material |
1.4404 (316L), 1.4435 (316L), 1.4571 (316Ti), 2.4610 (HC4), 2.4602 (HC22) ball bearing: 1.4401 (316), sliding bearing: PEEK |
| Operating pressure |
max. 3 bar / 43,5 psi * |
| Flow rate | at recommended pressure: 1.2 – 2.5 m3 / h / 20 – 41.7 l / min / 5.3 – 11 gpm (US) * |
| Connection | Thread
Orbital weldon acc. DIN 11866 |
*depending on model and cleansing medium
