Tanko CP Spray Ball
Max Cleaning Diameter
3m
Flow Rate Range
42 - 212 L/min
Pressure Range
3 - 12 bar
Description

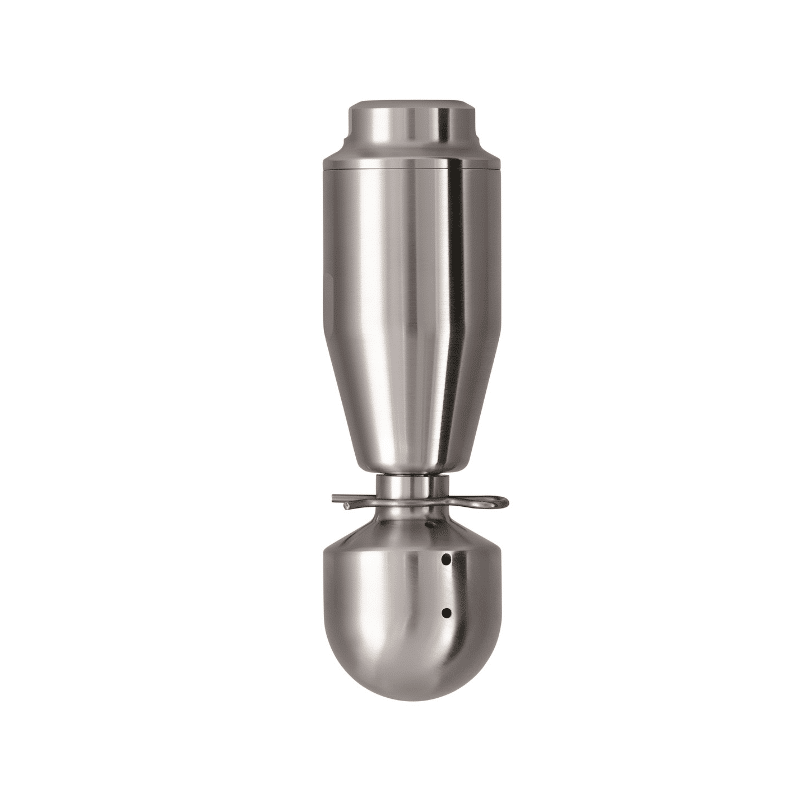

Jet Cleaner TANKO-CP2
The TANKO-CP2 is the newest member of the AWH TANKO-family. In terms of cleaning performance, the TANKO-CP2 comes between the spray balls of the TANKO-S series and the jet cleaners of the TANKO-JM series and offers a cost-effective way of effectively cleaning containers with a diameter of up to 4 m. With it slow and even rotation and strong impact, the TANKO-CP2 is suitable for cleaning containers which are used to hold contents that have a tendency to adhere strongly. The TANKO-CP2 is a system with plain bearings and a simple design with as few moving parts as possible. With its low servicing requirements, the TANKO-CP2 provides a compact and reliable solution for cleaning tasks with different cleaning media and a large temperature range.
| Material |
1.4401 (316), 1.4404 (316L), PTFE (FDA-conform) |
| Operating pressure | 3 – 12 bar / 44 – 174 psi |
| Volume flow rate |
2.5 – 6.5 m3/h / 41.7 – 108.3 l/min / 11 – 28.6 gpm (US) |
| Cleaning radius | max. 2 m / 6.6 ft |
| Wetting radius | max. 2.9 m / 9.5 ft |
| Connection |
3/4″ BSP- or NPT-internal thread Clipon for outer pipe diameter 25.4 mm |
