KYA – Roll Cooling Nozzle
Connection: M 30×2, Spray Angle: Capacity: 5.1 to 10.7 L.min, Material: Brass, AISI 303
Flow Rate
lpm@3bar(5.1 - 10.7)
Material
AISI 303 s.s. Brass
Connection
Metric Thread M30x2 Quick Coupling Ø28
Description

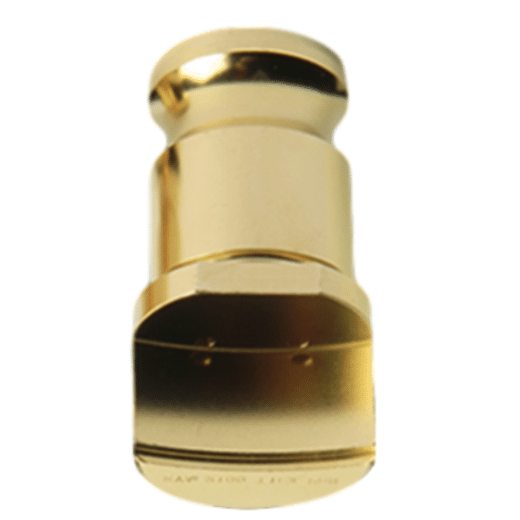

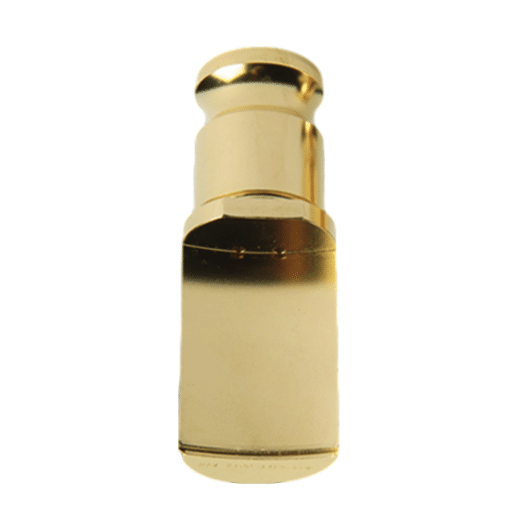

KYA – Roll Cooling Nozzle KYA type special flat fan jet nozzles are the best solution to cool forged steel rolls on continuous casting machines with high spray width values. The direction of the two jets is designed to obtain maximum cooling efficiency over a long reach. It is available in four different versions: standard (C) or long (L) body, metric thread (A) or quick coupling (X).
Product Enquiry
Technical Info

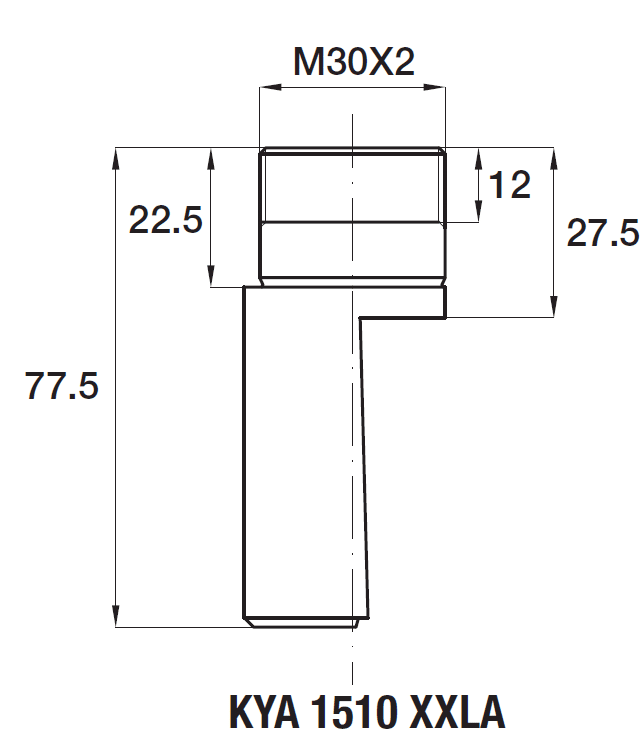

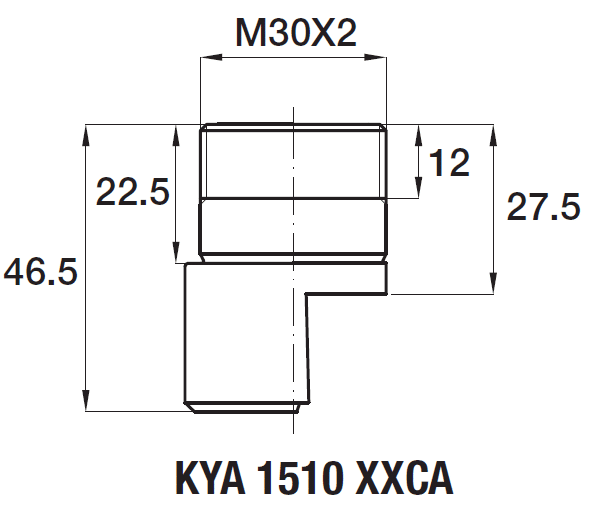

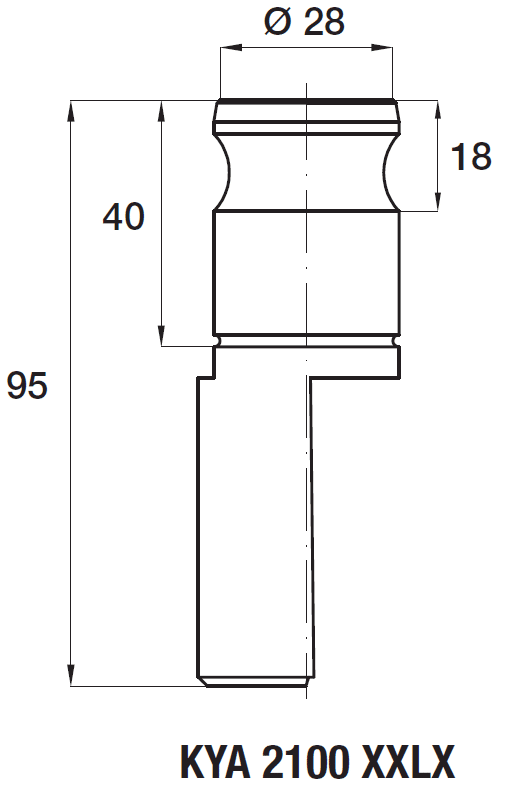

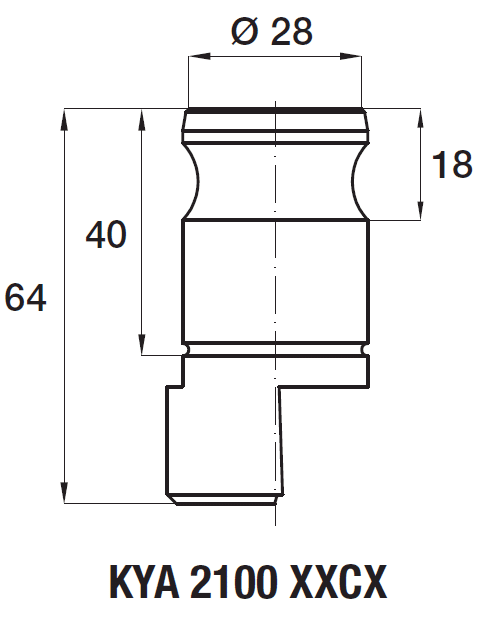

Dimensional Table(s)

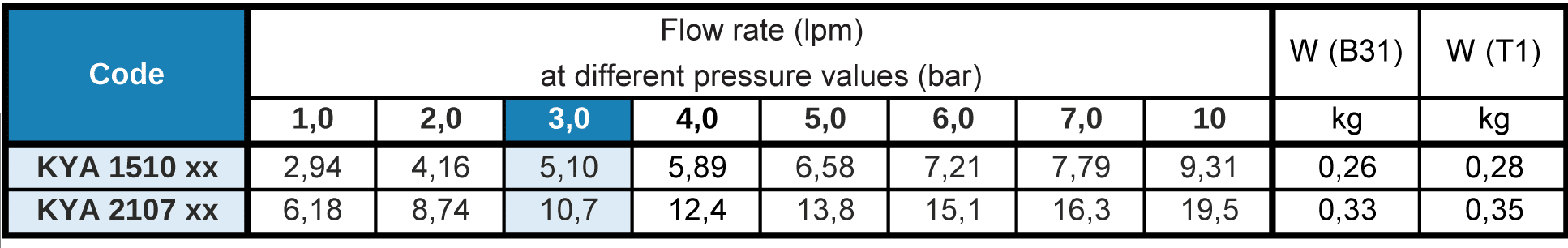

Flow Rate Table(s)

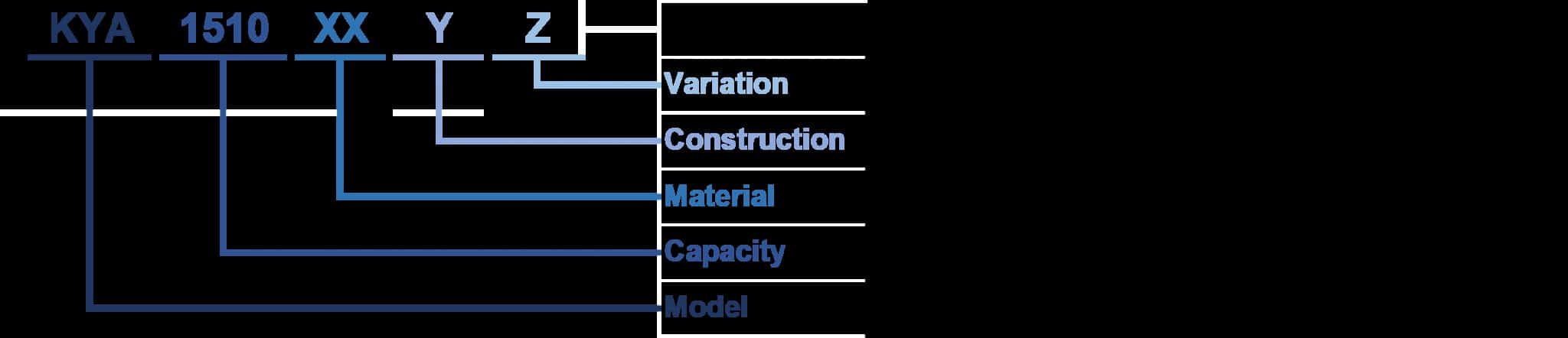

How to make up the Nozzle code
