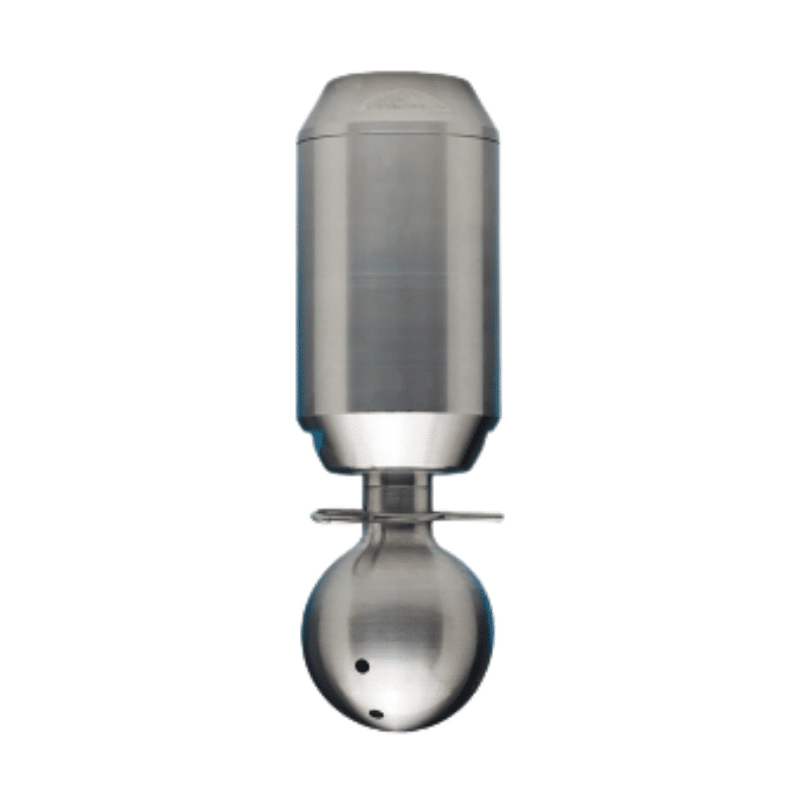

Troll Ball 2 Tank Washer
Max Cleaning Diameter
4.4m
Flow Rate Range
50 - 100 L/min
Pressure Range
3 - 12 bar
Description
The tank washer Troll Ball simple and effective drive mechanism ensures slow constant rotation speeds. This action provides consistent cleaning when using different cleaning fluids across a wide temperature range. The minimal moving parts provide a very low maintenance, compact cleaning solution.
Advantages
- Economic flow rates
- Ball bearing free-increased service life
- Slow, constant rotation
- Powerful round jets
- FDA conform
- Optional ATEX exempt
- Hygienic and self-cleaning
- SIP through the nozzle possible
- Preferred mounting position: vertical down
Operation
Wash fluid drives a simple rotating motor, which drives the rotating ball. All the wash fluid exits the unit through the small number of large holes. The specially designed pattern of holes ensures the high power jets use the minimum amount of wash fluid to deliver optimum performance.
Applications
The Troll Ball is ideal for replacing fixed or rotating spray balls. The high energy, high impact jets provide very effective cleaning. Compact in design, effective in performance, they meet all hygienic design requirements, which makes them highly suitable for the pharmaceutical, and biotech industries as well as food, beverage and other hygiene conscious industries.
| Troll Ball 2 Inch | Troll Ball 3 Inch | ||
| Recommended pressure | 3 – 12 bar (43.5 – 174 psi) | 3 – 12 bar (43.5 – 174 psi) | |
| Cleaning diameter | max. 4.4 m (14.4 ft) | max. 7.0 m (22.9 ft) | |
| Flow rate | 3 – 6 m³/h
(50 – 100 l/min / 13.2 – 26.4 USgpm) |
8.0 – 16.2 m³/h
(133.3 – 270 l/min / 35.2 – 71.3 USgpm) |
|
| Spray pattern | 360° (optional 180°) | ||
| Operating temperature | max. 120 °C (248 °F) | ||
| Ambient temperature | SIP max. 140 °C (284 °F), 30 min | SIP max. 140 °C (284 °F), 30 min | |
| Insertion opening | min. 70 mm (2.75 inch) | min. 90 mm (3.54 inch) | |
| Materials | Stainless Steel 316L(1.4404),
C-PTFE or PTFE |
||
| Pipe connection | 3/4″ BSPT, NPT or BSP female | 1 1/2″ BSPT or NPT female | |
| Weight | approx. 1.1 kg (2.2 lbs) | approx. 2.3 kg (5.07 lbs) | |
