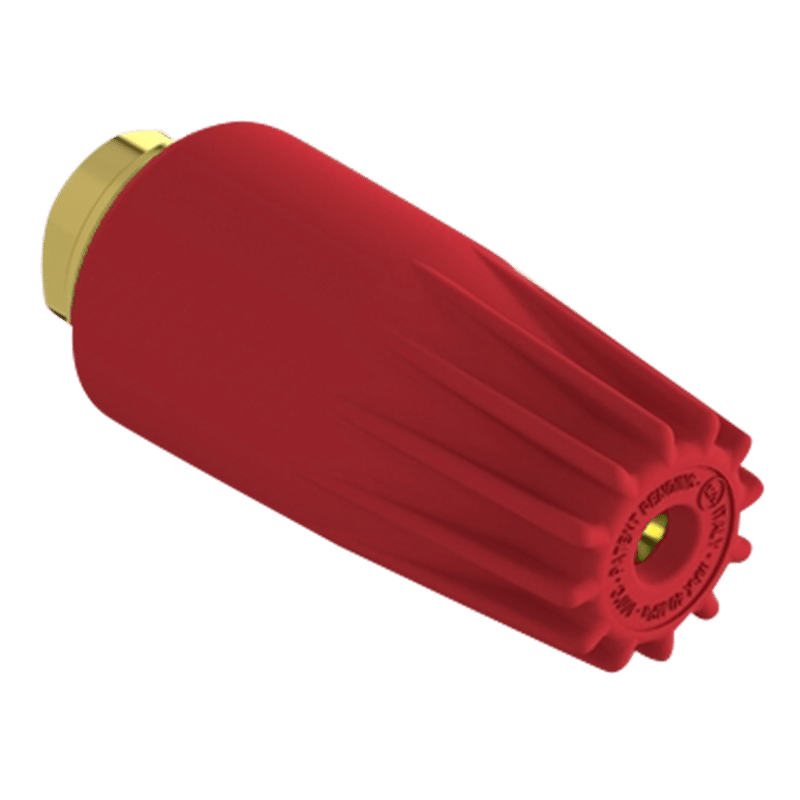

UR32 Turbo Nozzle
Connection
1/4" BSP
Max Pressure & Flow
350 Bar / 34 L/min
Material
Brass / Rubber
Description
| P/N | Nozzle Size | Inlet | Weight | ||
|---|---|---|---|---|---|
| P25169030 | 03 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169035 | 035 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169040 | 04 | 1/4 Bsp F | 412 gr – 14,53 oz | ||
| P25169045 | 045 | 1/4 Bsp F | 412 gr – 14,53 oz | ||
| P25169050 | 05 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169055 | 055 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169060 | 06 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169065 | 065 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169070 | 07 | 1/4 Bsp F | 410 gr – 14,46 oz | ||
| P25169080 | 08 | 1/4 Bsp F | 411 gr – 14,5 oz |
| Min. operating pressure | 180 bar – 18 MPa – 2600 psi |
| Rated Pressure | 350 bar – 35 MPa – 5100 psi |
| Min.flow rate | 9,1 ( 03 – 180 bar) l/min – 2,4 ( 03 – 2600 psi) USGpm |
| Max. flow rate | 34 ( 08 – 350 bar ) l/min – 9 ( 08 – 5100 psi ) USGpm |
| Rated Temperature | 100°C – 212°F |
| Min.operating temperature | 5°C – 41°F |
| Material | Brass |
