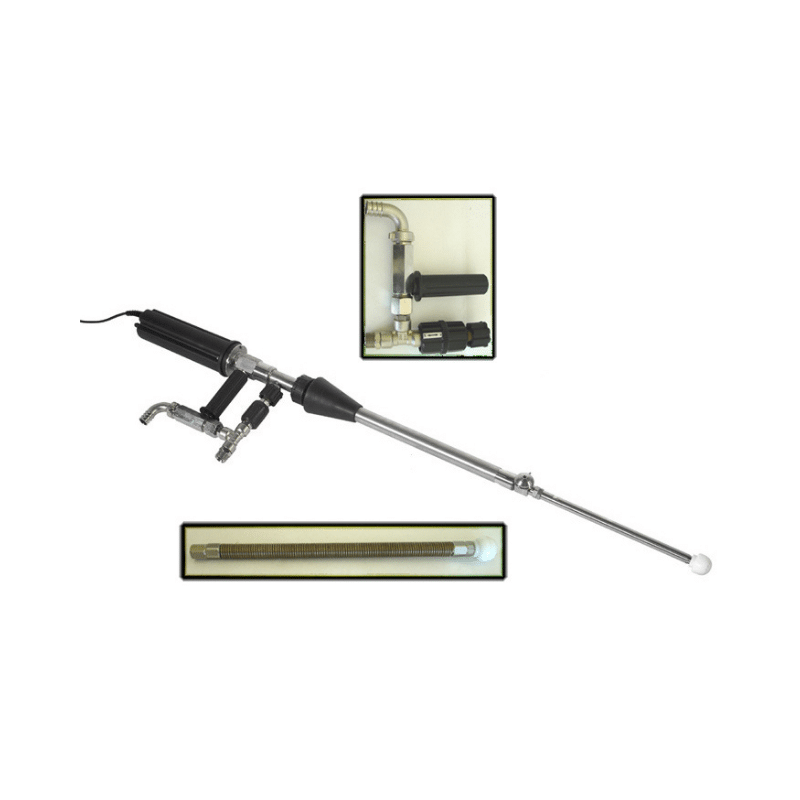

M25E Barrel Cleaner
Max Cleaning Diameter
m
Flow Rate Range
10 - 25 L/min
Pressure Range
140 bar
Description
Suitable for barrel sizes with a internal diameter of approx 730mm or 680mm. The cleans all internal surfaces of a barrel and at the same time syphons out all the water used in the cleaning process.
- Rated Pressure : 60 – 140 bar (870 – 2000PSI)
- Flow Rate : 10 – 25 l/m.
- Weight : 5.2 kgs.
- Maximum Working Temperature : 90 deg C
| Inlet | AR1 A M22 |
| Rated Pressure | 140 bar – 14 MPa – 2000 psi |
| Permissible Pressure | 160 bar – 16 MPa – 2300 psi |
| Rated Flow Rate | 10-25 l/min – 2,6-6,5 USGpm |
| Rated Temperature | 0-90 °C – 32-195 °F |
| Electric motor | 12 V DC – 8 W |
| Cable length | 10 mm – 394 in |
| Min.overall Ø | 40 mm – 1,57 in |
| Nozzle type | 2 × M4 |
