Max Cleaning Diameter
17m
Flow Rate Range
93 - 175 L/min
Pressure Range
4 - 10 bar
Description

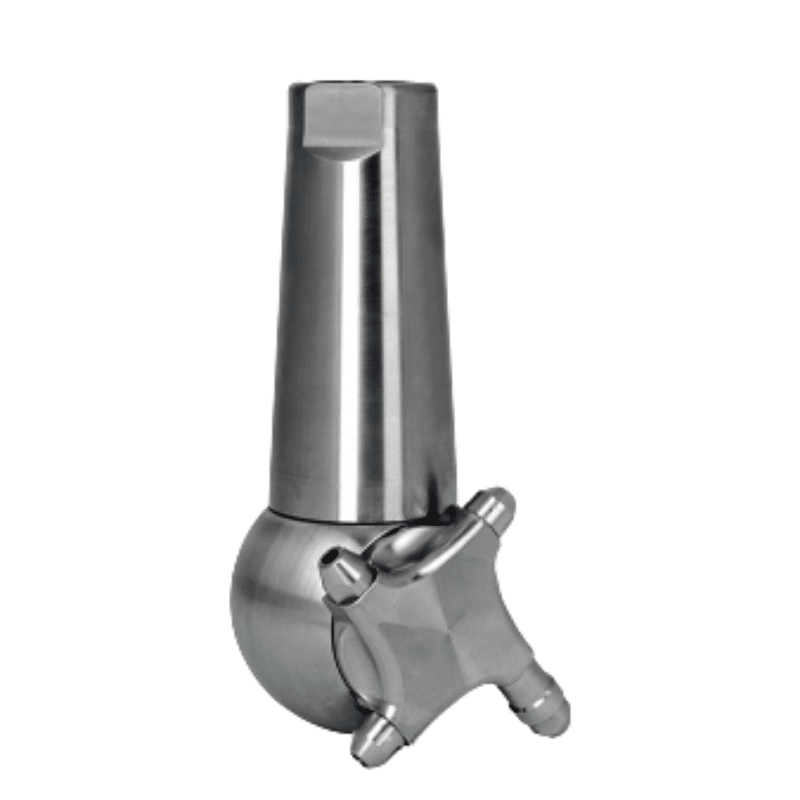

The orbital tank washer Typhoon is liquid driven and can be used for mobile or stationary applications. The round jet nozzles rotate in two planes and produce focused high impact jets generating a highly efficient 3D wash pattern.
Advantages
- Hygienic and compact design
- Ball bearing free
- Self-cleaning
- FDA conform
- Optional ATEX exempt
- Economic flow rates
- Easy-to-maintain
- Reproducible cleaning by monitoring of rotation
Applications
The hygienic and compact design combined with the high power jets, makes it perfect for cleaning a variety of vessel sizes and equipment, also where hygiene is a priority. The unit can be used in the brewing, beverage, dairy, food, chemicals, coatings and transport industries -as permanently fixed or mobile installations.
Item | Size |
Recommended pressure | 4 – 10 bar (58 – 145 psi) |
Cleaning diameter | up to 17 m (55.8 ft) |
Flow rate | 5.6 – 10.5 m³/h (93 – 175 l/min / 24.7 – 46.2 USgpm) |
Nozzle characteristics | 4 nozzles (4.5 mm or 6 mm diameter) |
Spray pattern | 360° |
Operating temperature | 95 °C max. (203°F) |
Ambient temperature | 140 °C max. (284°F), 30 min |
Insertion opening | 130 mm (5.12 Inch) |
Materials | Stainless Steel 316L (1.4404) with C-PTFE or PTFE, C-Peek |
Pipe connection | 1″ BSP or NPT Female |
Weight | approx. 2.8 kg (6.2 lbs) |
