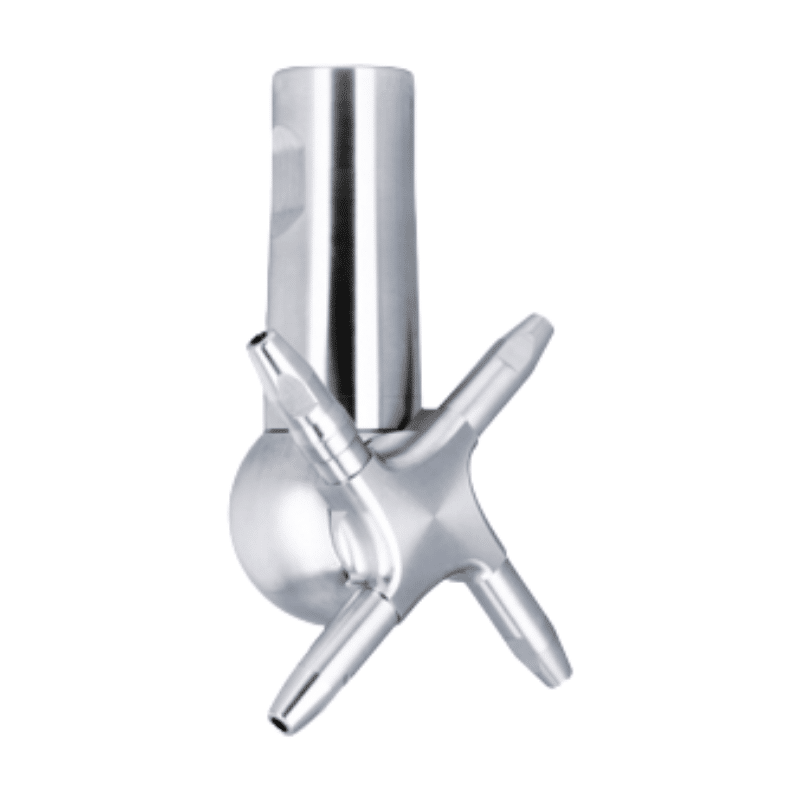

Tempest Tank Cleaner
Max Cleaning Diameter
19m
Flow Rate Range
200 - 390 L/min
Pressure Range
4 - 10 bar
Description
The orbital tank washer Tempest is liquid driven and can be used for mobile or stationary applications. The round jet nozzles rotate in two planes and produce focused high impact jets generating a highly efficient 3D wash pattern.
The orbital tank washer Tempest is powered by a simple turbine drive, resulting in low maintenance and very low running costs. The constant, repeatable and verifiable action of the unit provides very powerful, stable jets with high dwell times, maximising chemical contact time and mechanical energy. When combined with the new Veri-Clean validation system, the package makes the perfect jetting cleaning system.
Advantages
- Hygienic and compact design
- Ball bearing free
- Self-cleaning
- FDA conform
- Optional ATEX exempt
- Economic flow rates
- Easy-to-maintain
- Reproducible cleaning by monitoring of rotation
Applications
The hygienic and compact design combined with the high power jets, makes it perfect for cleaning a variety of vessel sizes and equipment, also where hygiene is a priority. The unit can be used in the brewing, beverage, dairy, food, chemicals, coatings and transport industries -as permanently fixed or mobile installations.
| Item | Size |
| Recommended pressure | 4 – 10 bar (58 – 145 psi) |
| Cleaning diameter | up to 19 m (62 ft) |
| Flow rate | 12.0 – 23.4 m3/h
(200 – 390 l/min / 53 – 103 USgpm) |
| Nozzle characteristics | 4 nozzles (7 mm or 8 mm diameter) |
| Spray pattern | 360° |
| Operating temperature | 95 °C max. (203°F) |
| Ambient temperature | 140 °C max. (284°F), 30 min |
| Insertion opening | 210 mm (8.27 Inch) |
| Materials | Stainless steel 316L (1.4404),
C-PTFE or PTFE, C-PEEK |
| Pipe connection | 1½” BSP or NPT Female |
| Weight | approx. 3.9 kg (8.6 lbs) |
