Max Cleaning Diameter
11m
Flow Rate Range
180 - 580 L/min
Pressure Range
4 - 12 bar
Description

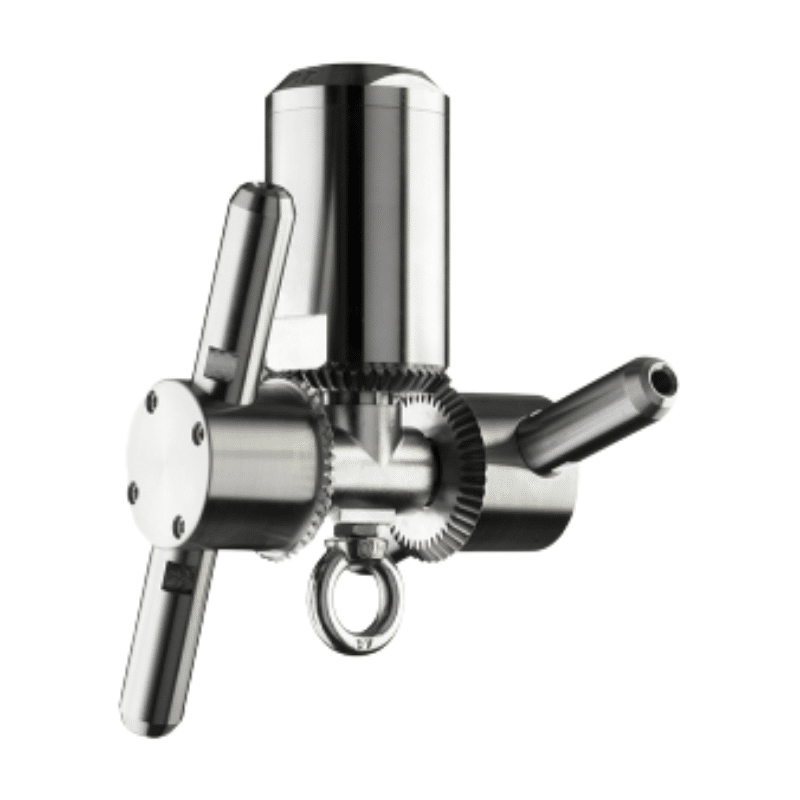

The orbital tank washer Jumbo 6 is used for a strong mechanical cleaning in large tanks up to 19 meters diameter. Due to the robust design, effective performance the Jumbo 6 units are highly suitable for the pharmaceutical, biotech, food, beverage and many other industries.
Advantages
- Powerful round jets
- High flow rate
- Resistant to blockage
- External gear
- Different nozzle diameter
- Monitoring by rotation sensor (optional)
- Preferred mounting position: vertical down, vertical up
Applications
The tank cleaner€™s ultra sleek design, is ideally suited to all applications where hygiene is a priority. The compact nature of the design combined with the high power jets, makes it perfect for cleaning a variety of vessel sizes and manufacturing equipment. Tempest units can be used in the brewing, beverage, dairy, food, chemicals, coatings and transport industries. The units can be used on permanently fixed or mobile installations.
Item | Size |
Recommended pressure | 4 – 12 bar (58 – 174 psi) |
Cleaning diameter | up to 11 m (36.1 ft) |
Flow rate | 10.8 – 34.8 m³/h (180 – 580 l/min, 47.6 – 153.2 USgpm) |
Nozzle characteristics | 4 nozzles (3/8€ or ¼€ diameter nozzles available) |
Spray pattern | 360° |
Operating temperature | max. 95 °C (203 °F) |
Ambient temperature | max. 140 °C (284 °F), 30 min |
Insertion opening | Ø 280 mm (11 inch) |
Materials | Stainlesss Steel 316L (1.4404), PTFE |
Pipe connection | 1½€ BSPT or NPT Female |
Weight | approx. 4.4 kg (9.7 lbs) |
