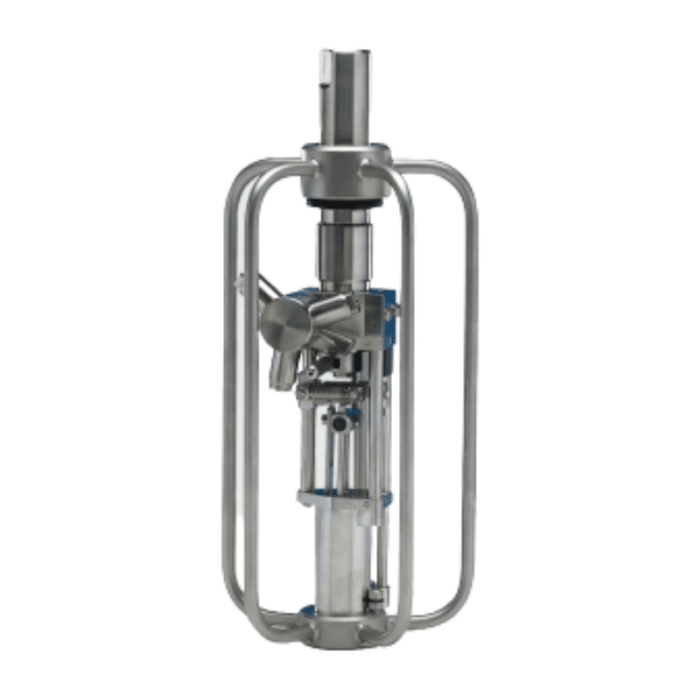

Fury TWB Tank Cleaner

Max Cleaning Diameter

16m

Flow Rate Range

24 - 105 L/min

Pressure Range

5 - 25 bar

Description

The orbital tank washers Fury TWB & TWB High Pressure are ideal where high power jets and low flow volumes of cleaning fluid are essential to minimize effluent costs and reduce the wash cycle time, while giving minimum maintenance costs and long life. The orbital tank washer Fury TWB is ideal for mobile use in the middle pressure range for large tank diameters.

Advantages Fury TWB

  • Powerful jets
  • High economic flow rates
  • Cage protection
  • Low effluent costs
  • Low wear
  • Preferred mounting position: vertical down, vertical up

Advantages Fury TWB HP

The orbital tank washer Fury TWB HP is ideal for mobile applications in the high-pressure area.

  • High power jets
  • Economic flow rates
  • Cage protection
  • Low wear
  • Preferred mounting position:vertical down, vertical up

Operation

The tank cleaners TWB & TWB HP are self lubricating and driven by the wash fluid. With no high speed turbines or complex gear mechanisms, there is minimal wear and servicing of the extremely strong design of the TWB. The TWB indexing mechanism provides an evenly spaced wash pattern and the tank washer nozzles are designed to give super effective surface coverage with maximum impact.

Applications

The versatile tank washers Fury TWB & TWB HP offer a 360° wash pattern for tote bins, process vessels, road tankers, and other transport containers. TWB is used extensively in the dairy, food, beverage, pharmaceutical, chemical, coatings, and road and rail transport industries. Lightweight and compact, the TWB can be used permanently installed or on a mobile basis,

Technical Data
Item Fury TWB Fury TWB High Pressure
Recommended pressure 5 – 25 bar (72.5 – 362 psi) 25 – 90 bar (363 – 1,305 psi)
Cleaning diameter up to 16 m (52.5 ft) up to 10 m (32.8 ft)
Flow rate 1.4 – 6.3 m³/h

(23.3 – 105 l/min,

6.2 – 27.7 USgpm)

2.4 – 4.2 m³/h

(40 – 70 l/min,

10.6 – 18.5 Usgpm

Nozzle characteristics 3 nozzles (2 mm, 3 mm or 4 mm diameter) 3 nozzles (2 mm diameter)
Spray pattern 360°
Operating temperature max. 95 °C (203 °F)
Ambient temperature max. 140 °C (284 °F), 30 min
Insertion opening min. Ø 200 mm (8 Inch)

(optional min. Ø 120 mm (4.7 inch))

Materials stainless steel 316L (1.4404), C-PTFE, C-PEEK,

Nitrile O rings

(optional Viton, FEP encapsulated Viton, Kalrez)

Pipe connection  ¾€ BSP or NPT Female
Weight approx. 4.4 kg (9.7 lbs) approx. 4.4 kg (9.7 lbs)
