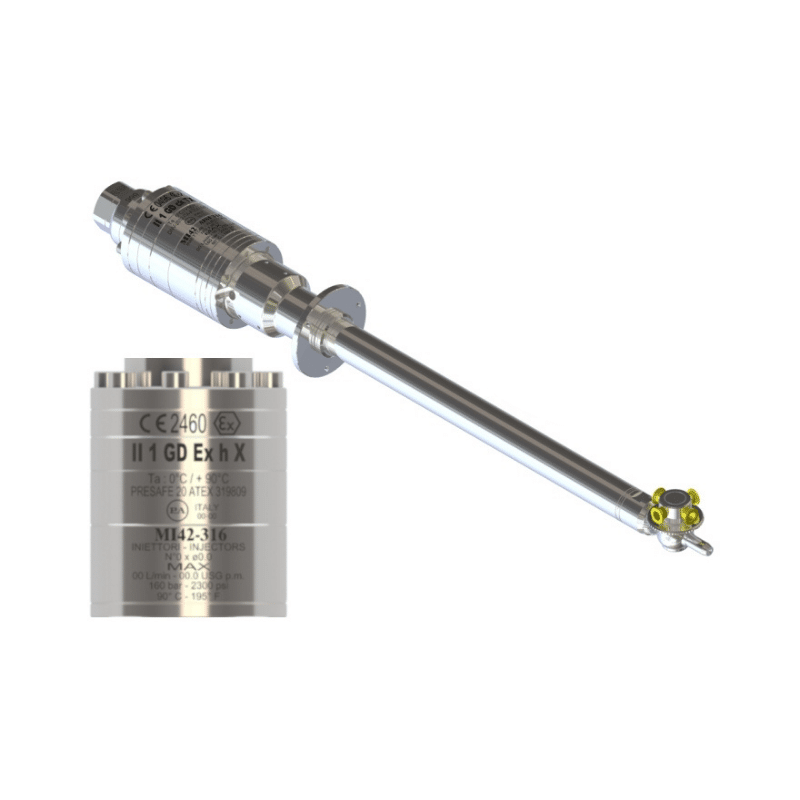

MI42 316 Tank Cleaner
Max Cleaning Diameter
m
Flow Rate Range
20 - 65 L/min
Pressure Range
140 bar
Description
AISI 316 Stainless steel tank cleaning nozzle complying with the NFS standard 51 requirements for food, chemical and pharmaceutical applications. Unit for tanks with small openings such as barrels. Has the same body as the A42R 316-360° but with a lance to place the nozzles in the center of the tank, whilst keeping the body outside. This unit is supplied with ATEX certification for use in explosive environments.
| Rated Pressure | 140 bar – 14 MPa – 2000 psi |
| Min. operating pressure | 40 bar – 4 MPa – 580 psi |
| Permissible Pressure | 160 bar – 16 MPa – 2300 psi |
| Rated Flow Rate | 20 – 65 l/min – 5,3 – 17,2 USGpm |
| Rated Temperature | 0-90 °C – 32-195 °F |
| Rated rotation speed | 18-24 giri/min |
| Inlet | 1/2 Bsp F |
| Nozzle type | 4 × 1/8 Npt |
| Min.overall Ø | 62,5 mm – 2,46 in |
| Material | Stainless steel Ai316 |
