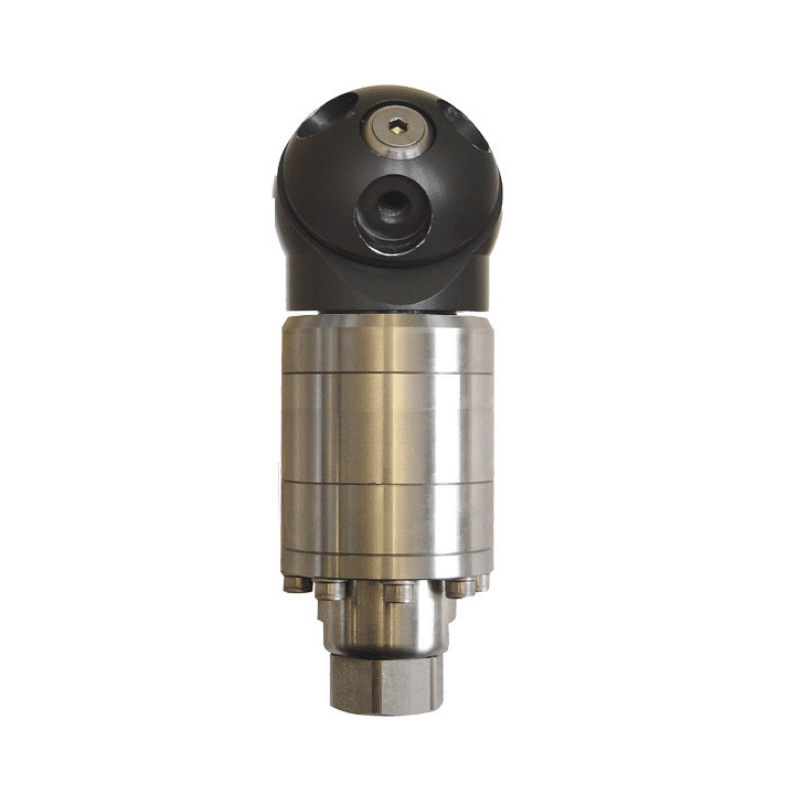

A42R Cleaning Head
Max Cleaning Diameter
m
Flow Rate Range
20 - 55 L/min
Pressure Range
140 bar
Description
Heavy duty tank cleaning nozzle used for a variety of applications including wheelie bin washing.
Also available A42R2 with 2 step reduction gears instead of 3 steps for faster rotation
- Rated Pressure : 40 – 140 bar (580 – 2000 PSI)
- Flow Rate : 20 – 50 l/m
- Rotation speed set by factory to give optimal cleaning.
- Designed for cleaning inside open top containers, rubbish bins or skips.
- Spray coverage – 244 deg
- Very reliable.
| Inlet | 1/2 Bsp F |
| Rated Pressure | 140 bar – 14 MPa – 2000 psi |
| Min. operating pressure | 40 bar – 4 MPa – 580 psi |
| Permissible Pressure | 160 bar – 16 MPa – 2300 psi |
| Rated Flow Rate | 20 – 50 l/min – 5-13,2 USGpm |
| Rated Temperature | 0-90 °C – 32-195 °F |
| Nozzle type | 3 × 1/8 Npt |
| Rated rotation speed | 29 – 36 giri/min |
