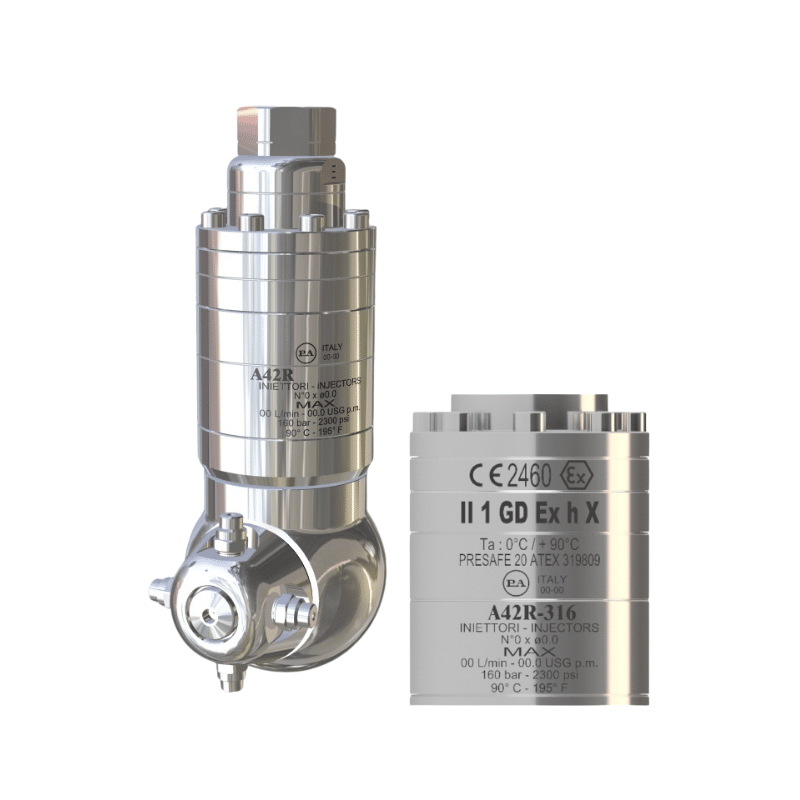

A42R 316-360° Cleaner
Max Cleaning Diameter
m
Flow Rate Range
20 - 55 L/min
Pressure Range
140 bar
Description
AISI 316 Stainless steel tank cleaning head complying to the NSF standard 51 requirements for food, chemical and pharmaceutical industry applications. Supplied with ATEX certification for applications in potentially explosive environments. Rotation speed independent of water.
| Inlet | 1/2 Bsp F |
| Rated Pressure | 140 bar – 14 MPa – 2000 psi |
| Min. operating pressure | 40 bar – 4 MPa – 580 psi |
| Permissible Pressure | 160 bar – 16 MPa – 2300 psi |
| Rated Flow Rate | 20 – 55 l/min – 5,3 – 14,5 USGpm |
| Rated Temperature | 0-90 °C – 32-195 °F |
| Nozzle type | 4 × 1/8 Npt |
| Rated rotation speed | 18 – 24 giri/min |
| Material | Stainless steel Ai316 |
