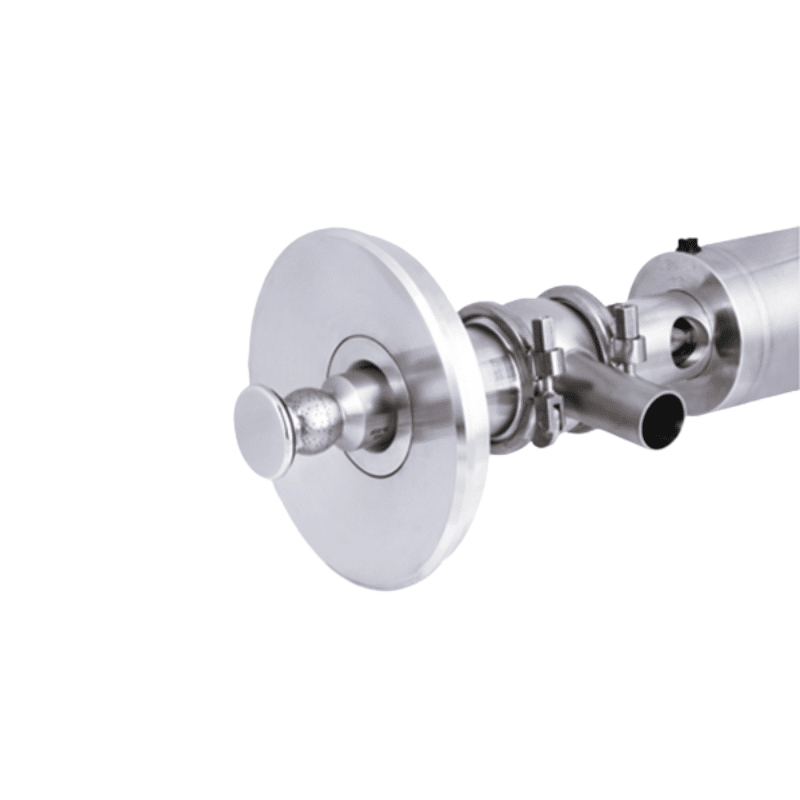

In-line Sprayer IS25

In-Line Sprayer IS 25

The In-line Sprayer is equipped with a pullout spray head that is withdrawn from the product chamber during production (Retractor). This design makes the IS 25 in particular suitable for the cleaning of tanks with moving components, such as straight-armpaddle agitators and scrapers. For pipe CIP using large amounts of solvents as cleaning medium , the use of Inline Sprayers reduces the costs for cleaning considerably.

During the cleaning procedure the sprayhead is pneumatically actuated and pulled out. On completion of the cleaning cycle, the spray head returns to its non-actuated position by spring.

Advantages:

  • Operational safe in function and process
  • Can be validated
  • Spring-closing, pneumatic opening
  • Vacuum resistant up to -0.9 barG
  • Feedback of both actuated positions
  • Proximity switch holder for feedback or control module
  • Allowed in ATEX Zone 0G/20D, but with control module made of Vestamid
  • Seal rings in: EPDM/FKM or solvent resistant FFKM
  • Surfaces in contact with CIP and product Ra ≤ 0.8 μm
  • FDA conform
  • ATEX exempt (optional)
