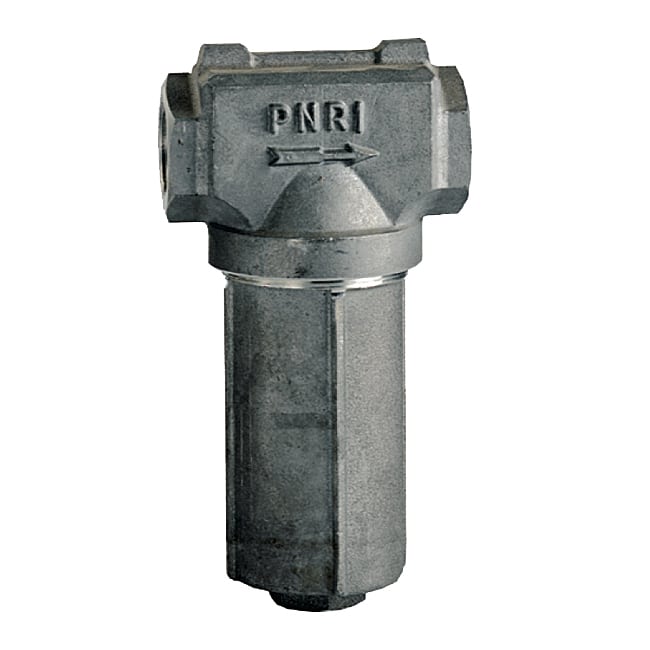

VEM – Large Capacity Filter
Flow Rate
N/A
Material
Body & bowl: Aluminium casting Cartridge: AISI 304 s.s.
Connection
Inlet/outlet thread size
From 1/2″ to 3″
Max working pressure
40 bar
Description
EM – LARGE CAPACITY FILTERS
VEM filters are specially designed for high particle retention, easy maintenance and great efficiency in harsh operating conditions. Their bowl houses a large size cartridge for a longer operating life and reduced servicing times. The threaded connection to the filter body allows a quick removal with no need of tools. A plug placed at the bottom of the bowl allows to fit in a ball valve to purge the filter.
Product Enquiry
Technical Info

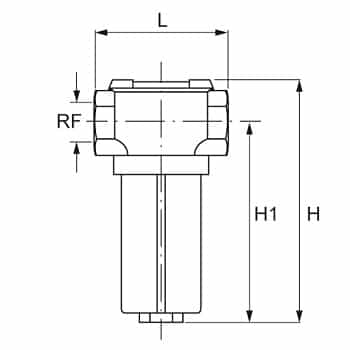

Dimensional Table(s)

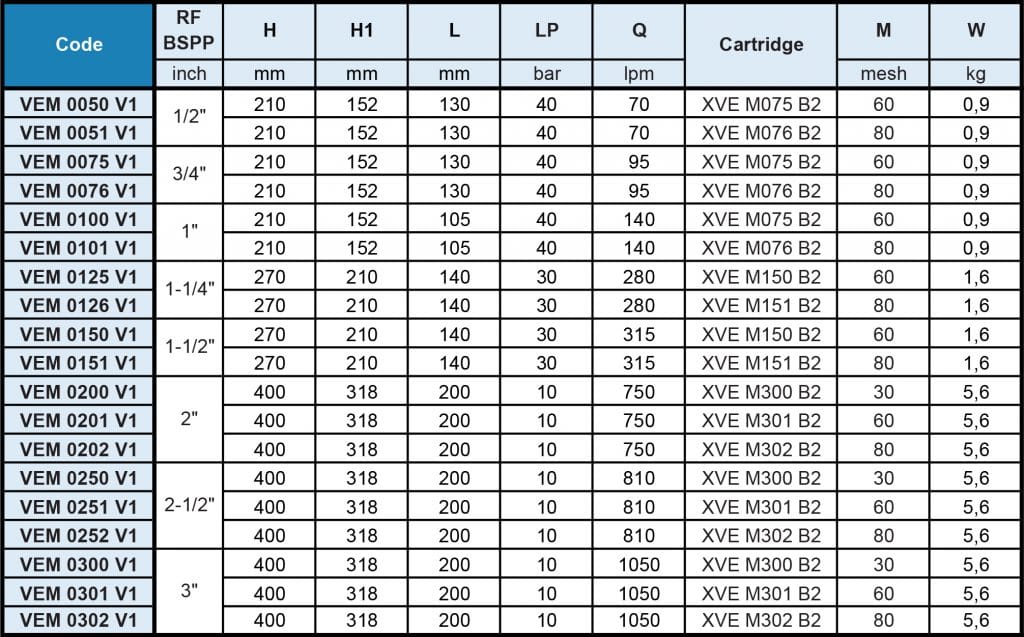

Flow Rate Table(s)
