VEL – Brass Body Filter
Flow Rate
N/A
Material
Body: Nickel plated brass Cartridge: AISI 304 s.s.
Connection
Inlet/outlet thread size
From 1/2″ to 2″
Max steam pressure
16 bar
Description
VEL – BRASS BODY FILTERS
VEL type filters with body in brass are the ideal solution for small plants requiring easy cleaning and maintenance. When necessary, simply open the valve at the bottom of the filter and the dirt contained inside the cartridge is easily expelled. A manometer on the filter head shows the outlet pressure hence pressure drop when clogged.
Product Enquiry
Technical Info

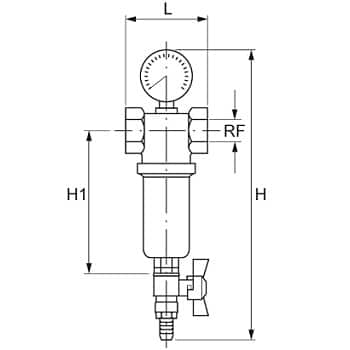

Dimensional Table(s)

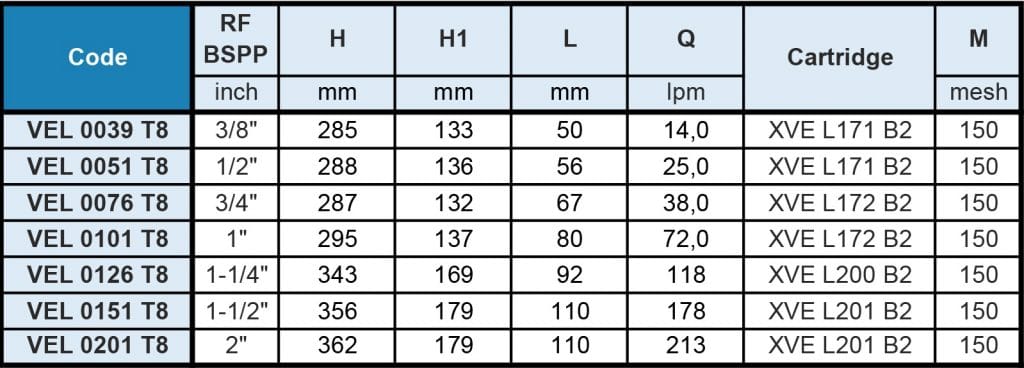

Flow Rate Table(s)
