VED – Check-Valve Filter
Flow Rate
N/A
Material
Body: AISI 303 s.s., AISI 316L s.s., Brass, Nylon Wire net: AISI 304 s.s.
Connection
None
Description
VED – CHECK-VALVE FILTERS
VED series check-valve filters are specially designed for 3/8″ flanged nozzles. VED filters contain a one-way ball valve to avoid dripping when spray is turned off. They also serve to protect the nozzle tips. We recommend to assemble check-valve filters on small capacity nozzles to avoid clogging and enhance their performance.
Product Enquiry
Technical Info

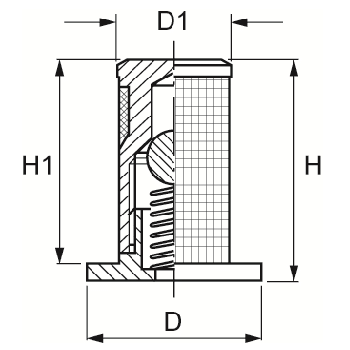

Dimensional Table(s)

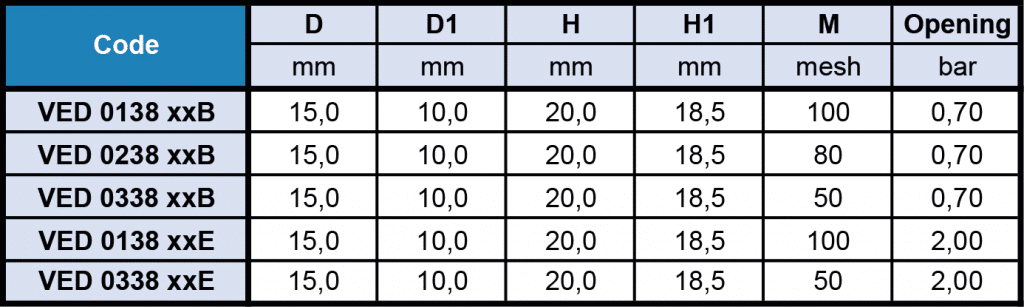

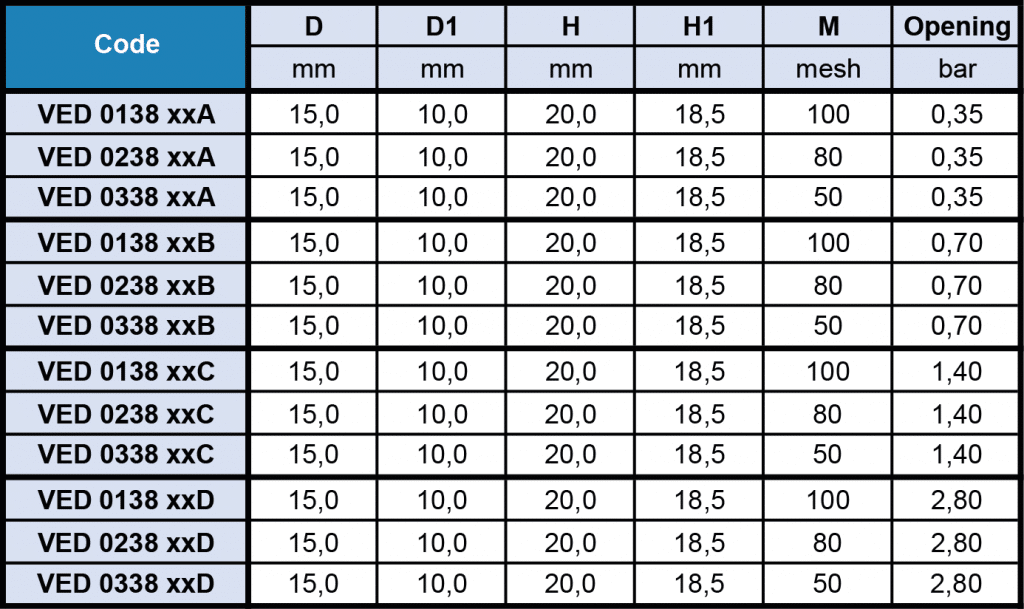

Flow Rate Table(s)
