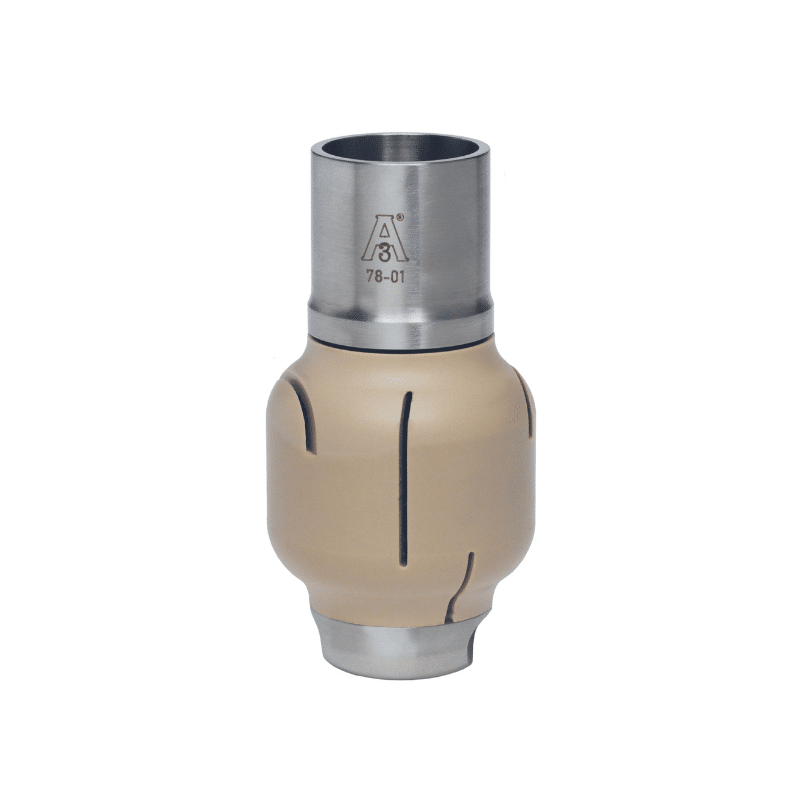

Tanko-SF Spray Ball

Spate cleaner TANKO-SF, 3-A Sanitary Standard certified


Some important features at a glance

  • 3-A designed
  • clipon or weldon
  • low wear PEEK body
  • slide bearing
  • easy to maintain
  • drainable
  • designed for the food industrie

The new spate cleaner TANKO-SF is based upon the TANKO-S40 and grants reliable CIP cleaning results thanks to enhanced cleaning power. With his outstanding slide bearing a remarkable reduction of wear has been achieved. The TANKO-SF has been designed in accordance with the American 3-A criteria, which demand extraordinary hygienic design principles. Its special shape provides wide, easily accessible radii to achieve maximum hygienic conditions. The simple construction enables maintenance of the TANKO-SF and makes it one of the most economical cleaning devices of all.

Technical Data
Material

1.4435 (316L), 1.4430 (316L), TECA PEEK natur, 70 EPDM 291

Operating pressure cleansing medium: 1 – 3 bar / 14.5 – 43.5 psi *
Volume flow rate 3,2 – 6 m³/h / 52,3 – 100 l/min / 14 – 26 gpm (US) *
Working temperature cleansing medium: max. 95°C / 203°F
Cleaning radius max. 1.5 m / 4.9 ft
Wetting radius max. 2 m / 6.6 ft
Connection Clipon
Orbital weldon acc. DIN 11866
