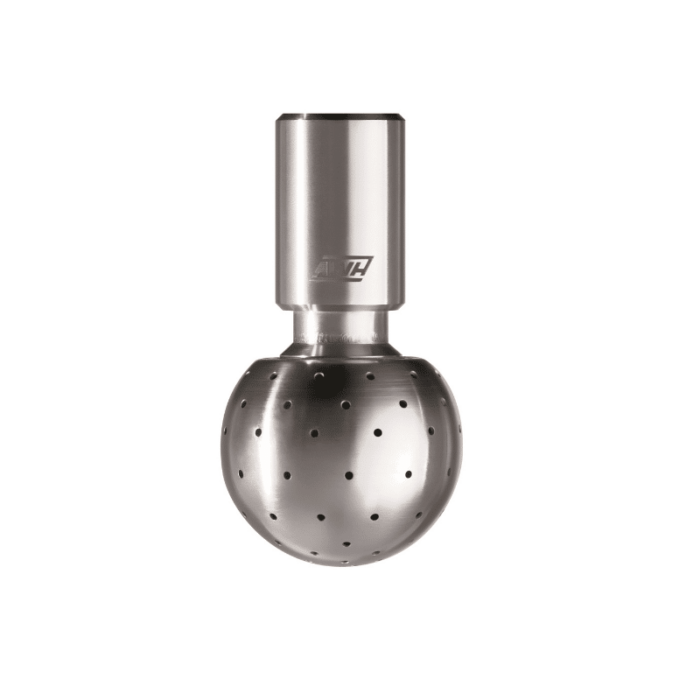

Tanko-RB Spray Ball

The rotating spray head TANKO-RB unites the well known features of a static spray ball with the advantages of a rotating system. Owing to the spray ball rotation large quantities of cleaning agent are spread homogeneously onto the inner surface of your vessels in shortest time.

The results are a considerable reduction of cleansing agent consumption and cleaning duration. Even in case of a failure of the rotating system, the cleaning function of the now static spray ball is maintained.

Technical Data
Material

1.4404 (316L), 1.4435 (316L), 1.4571 (316Ti), 2.4610 (HC4), 2.4602 (HC22)
bearing balls: 1.4401 (316),
optional: 2.4610 (HC4), 2.4602 (HC22)

Operating pressure

1.5 – 3 bar / 22 – 43.5 psi *

Volume flow rate 2.4 – 28.9 m³/h / 40 – 481.7 l/min / 10.6 – 127.2 gpm (US) *
Cleaning radius TANKO-RB30: max. 0.75 m / 2.5 ft
TANKO-RB40: max. 1.25 m / 4.1 ft
TANKO-RB64: max. 1.5 m / 4.9 ft
TANKO-RB90: max. 2.5 m / 8.2 ft
Connection Clipon
Thread
Weldon acc. DIN 11866

*depending on model and cleansing medium
