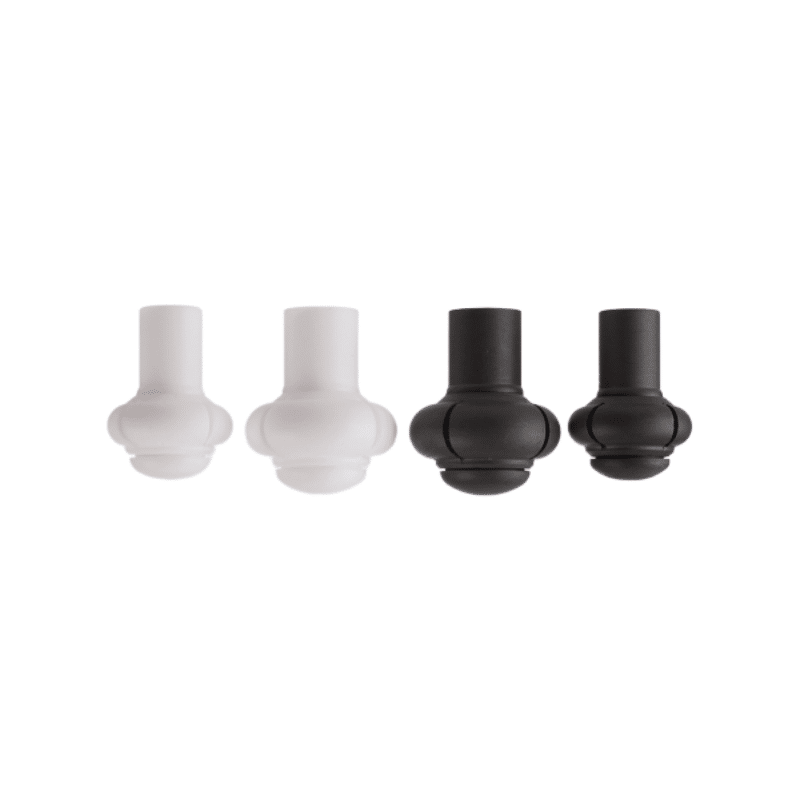

Chemitorus 50/75

Advantages

  • Hygienic design
  • Economic flow rates
  • Ball bearing free-increased service life
  • Low operating pressure
  • FDA conform and ATEX exempt
  • Versatile range of applications
  • SIP through the nozzle possible
  • Preferred mounting position: any
  • Available for tank safety system VARITOP®



Technical Data

Recommended pressure: 1-4 bar (14.5-58 psi)
Cleaning diameter: 2.2m, 3.3m
Flow rate: 15-33 L/min, 30-77 L/min
Spray pattern: 360° (180° on request)
Operating temp: 65°C
Ambient temp: SIP max 75°C 30 min
Insertion opening: Ø42mm, Ø52mm
Materials: PTFE or C-PTFE (ATEX)
Connection: 3/8″ BSP, 1/2″ BSP,



Versatile & Unique

The Breconcherry Torus is ideally suited for applications where low flow and low pressure demands are critical. The ability to operate from pressures as low as 1 bar with flow rates as low as 15 litres per minute enables the Torus to clean many areas usually cleaned by manual means as well as replacing static sprayballs with a more dynamic wash. The Torus range offers a wide choice of models which can accommodate individual customer requirements for flow and pressure dynamics.

Applications

Ideally suited to low flow, low pressure application such as glove box / biohazard containment areas, the Torus is compact enough to be mounted inside pipe work to flush the pipe work, or used to replace standard spray balls / wash heads in larger vessels. Torus is manufactured from FDA-approved materials to give complete sanitary compliance for the pharmaceutical and food industries. ATEX exempt versions are also available.

Operation

Wash fluid is directed through the slots on the rotating disc, dispensing a spray of fast moving droplets giving total coverage. Ideal for burst rinsing as well as prolonged washing with instant, strong impact performance. The Torus is available in a 360° wash pattern.

Maintenance & Inspection

The low friction design requires minimal maintenance. No Spare parts are required. Technical assistance or repair facilities required can be obtained through the global Breconcherry distributor network. As with all mechanical devices, it is recommended that the unit be regularly inspected for correct operation.
